From: Changes in cross-frequency coupling following closed-loop auditory stimulation in non-rapid eye movement sleep

Figure 4

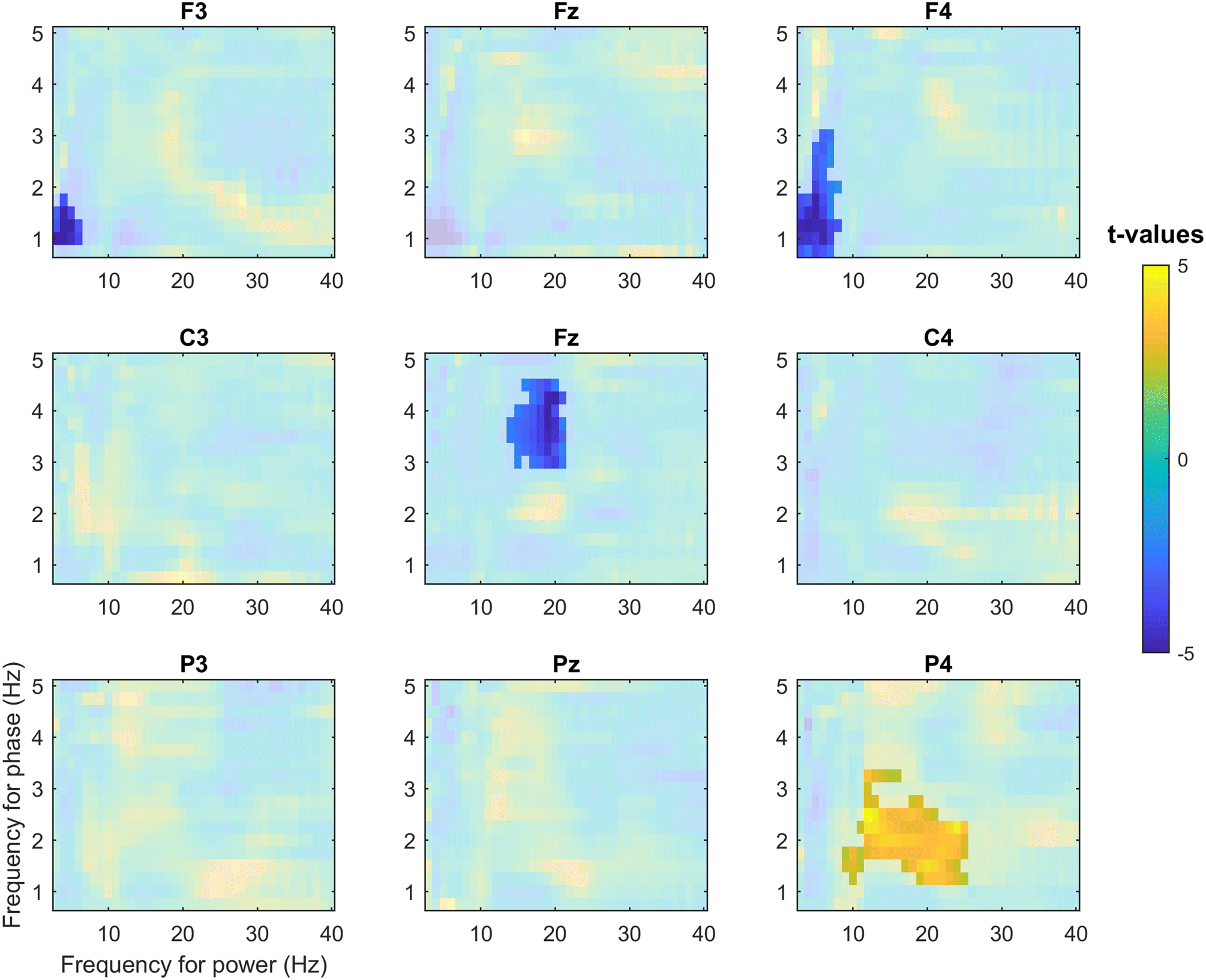

The z-scored modulation index as a function of amplitude (3–40 Hz) and phase (0.75–5 Hz) for nine electrodes. Non-shaded areas indicate statistically significant changes in cross-frequency coupling between STIM and SHAM conditions (cluster corrected two-sided p < 0.05). Reduction in coupling strength for delta and theta was observed in frontal channels F3 and F4 while coupling strength for delta and sigma bands was increased in the parietal electrode P4, located posterior to the target channel C4.
