Figure 4
From: Quantification of muco-obstructive lung disease variability in mice via laboratory X-ray velocimetry

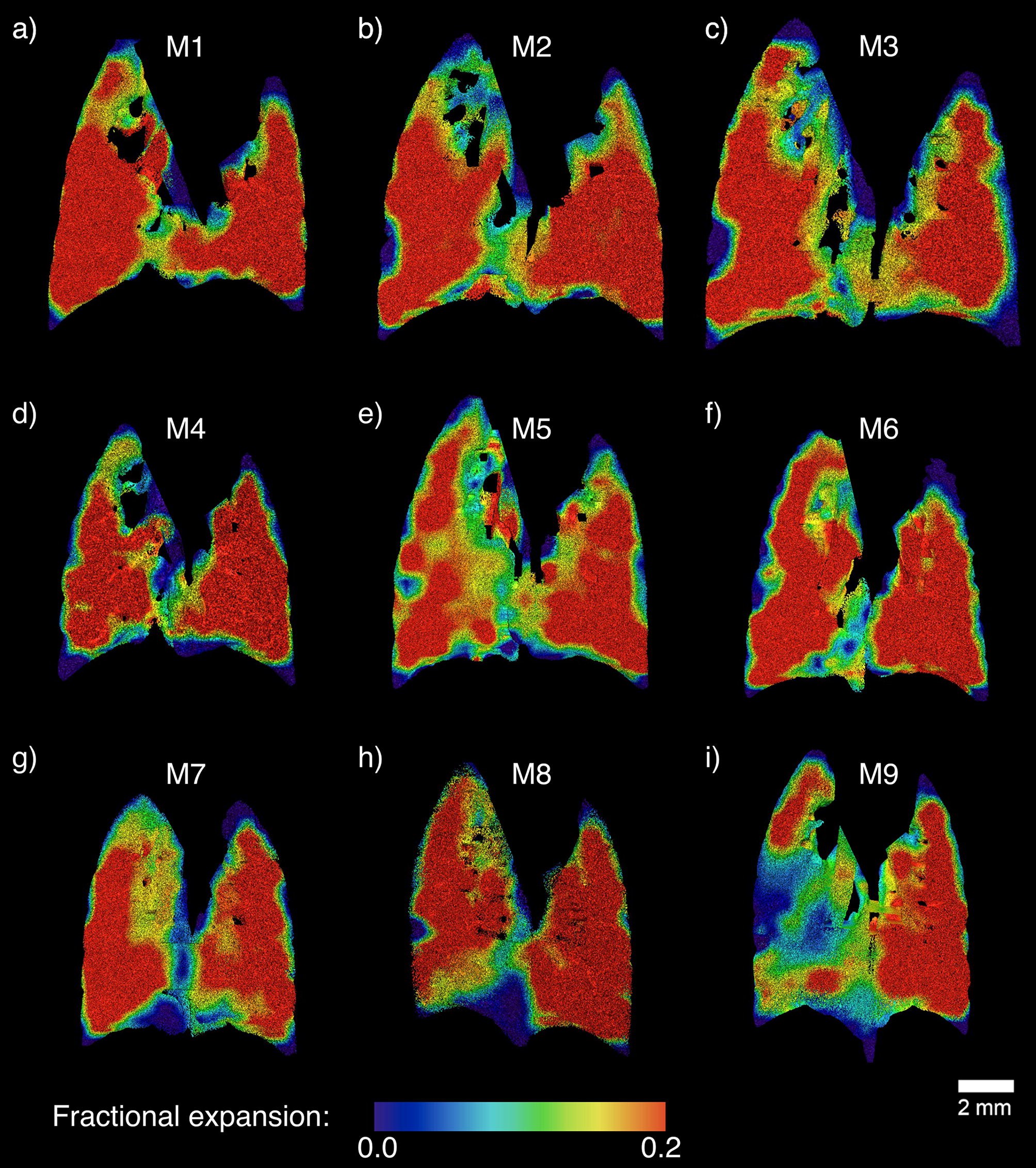

Coronal slices through the 3D expansion volumes that correspond to the histograms shown in Fig. 3, with the same mice shown in corresponding panels. Panels (a–c) show expansion maps from healthy littermates and (d–i) are those from β-ENaC mice. Note that a slice can reveal only a fraction of the whole volume, so does not necessarily reflect the level of disease heterogeneity that is apparent in Fig. 3.
