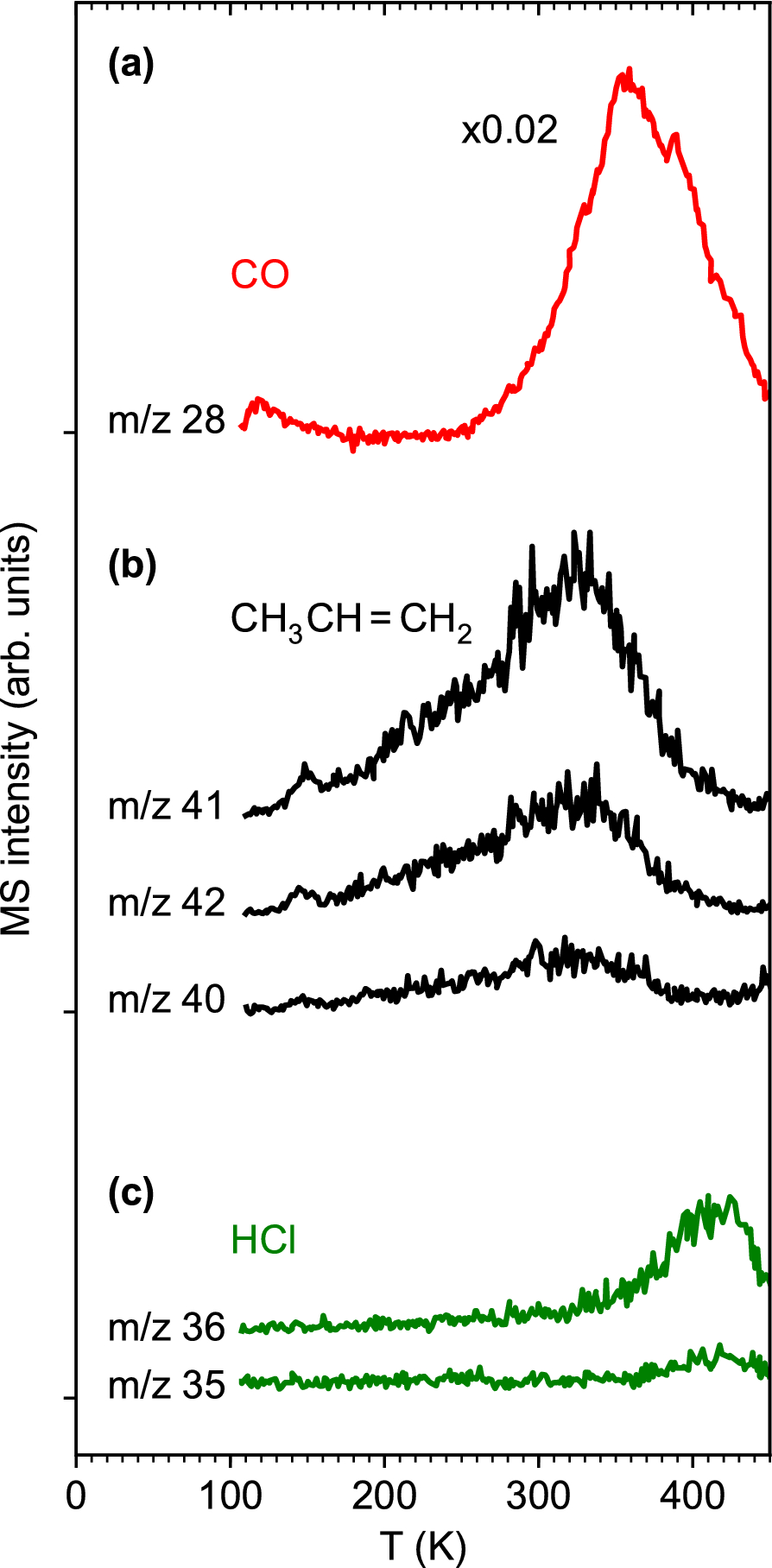

Figure 3

Thermal desorption spectra (TDS) acquired from an adsorbed layer of (η³-C₃H₅)Ru(CO)₃Cl on Ta following an electron exposure of 1.25·10¹⁷ e⁻/cm² at E₀ = 31 eV. The selected m/z values give evidence of desorption of (a) CO, (b) propene, and (c) HCl.
