Figure 3
From: Simplified modeling of E. coli mortality after genome damage induced by UV-C light exposure

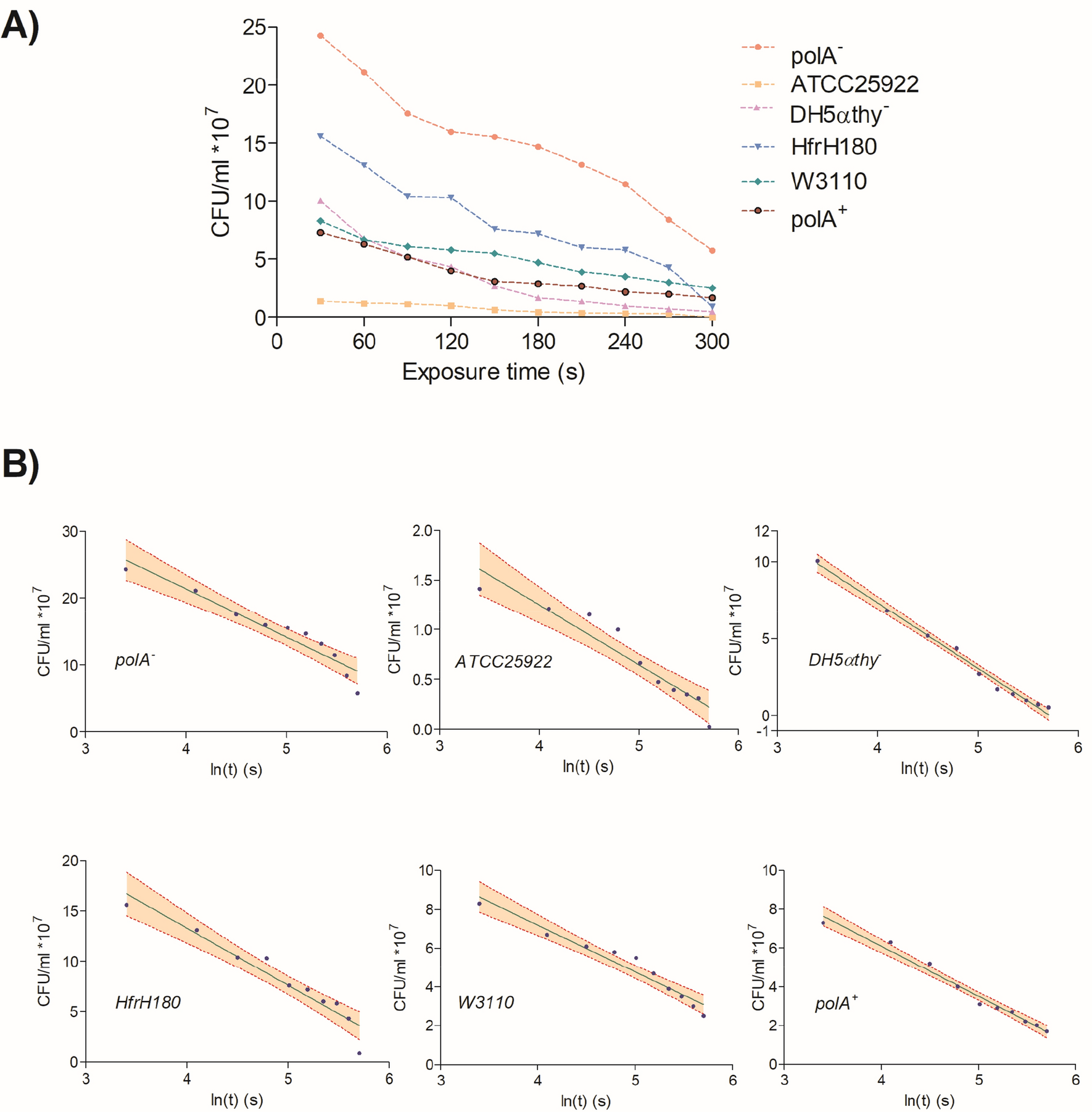

Survival curves of E coli strains. (a) Representation of survival of all used strains. (b) Dispersion plots with fiduciary limits (red lines) and confidence intervals (fawn colored area).
