Figure 5
From: On the correlation between solar activity and large earthquakes worldwide

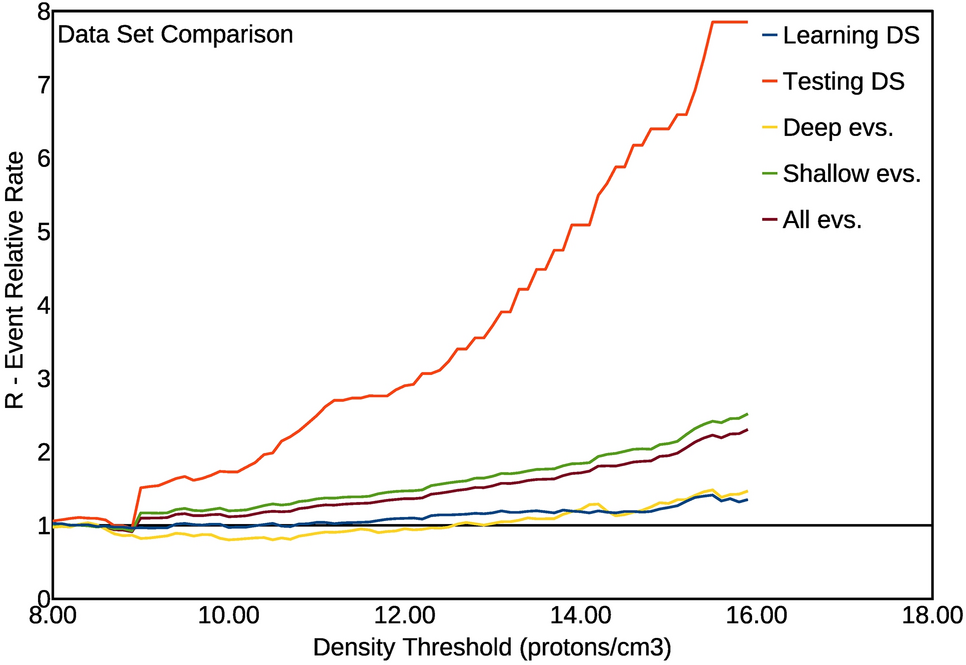

Plots of the Event Relative Rate R as a function of the absolute value of proton density, and for the condition 1Dy bT (earthquakes occurring within 24 h from the value of density decreasing below the threshold value). Colours indicate different subdivisions of the catalogue (the results for the total catalogue are shown by the brown curve).
