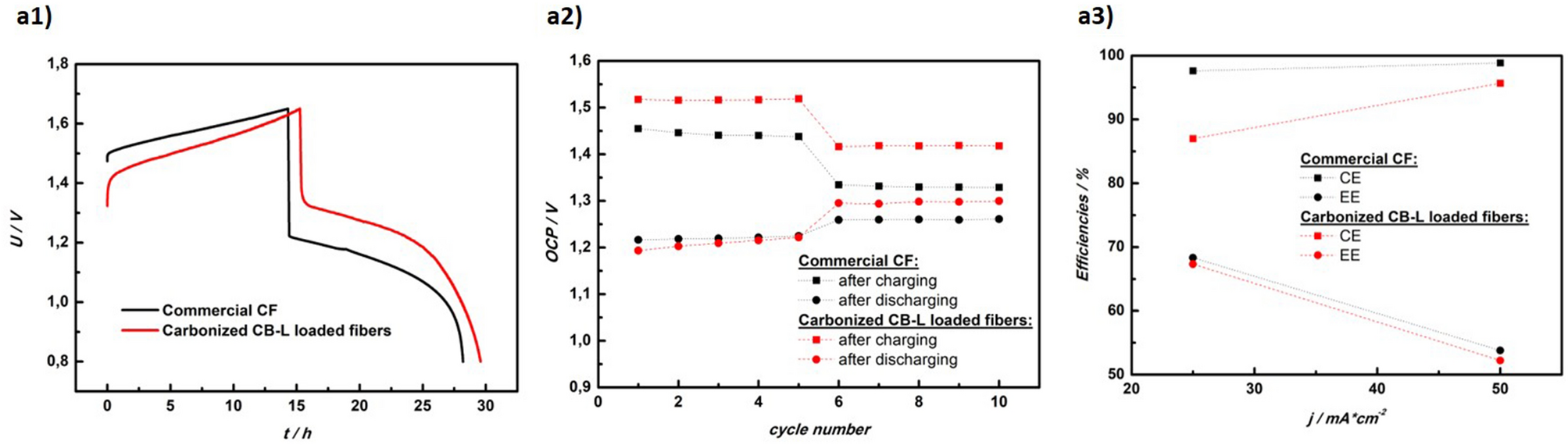

Figure 6

Results of full-cell cycling test. (a1) typical charge and discharge voltage curves at 25 mA cm⁻², (a2) open circuit potentials (OCP) obtained after each charging and discharging step, (a3) mean efficiencies (Coulombic efficiency as CE, energy efficiency as EE) at 25 and 50 mA cm⁻².
