Figure 4

From: Synergy effect of peroxidase enzymes and Fenton reactions greatly increase the anaerobic oxidation of soil organic matter

Figure 4The alt text for this image may have been generated using AI.

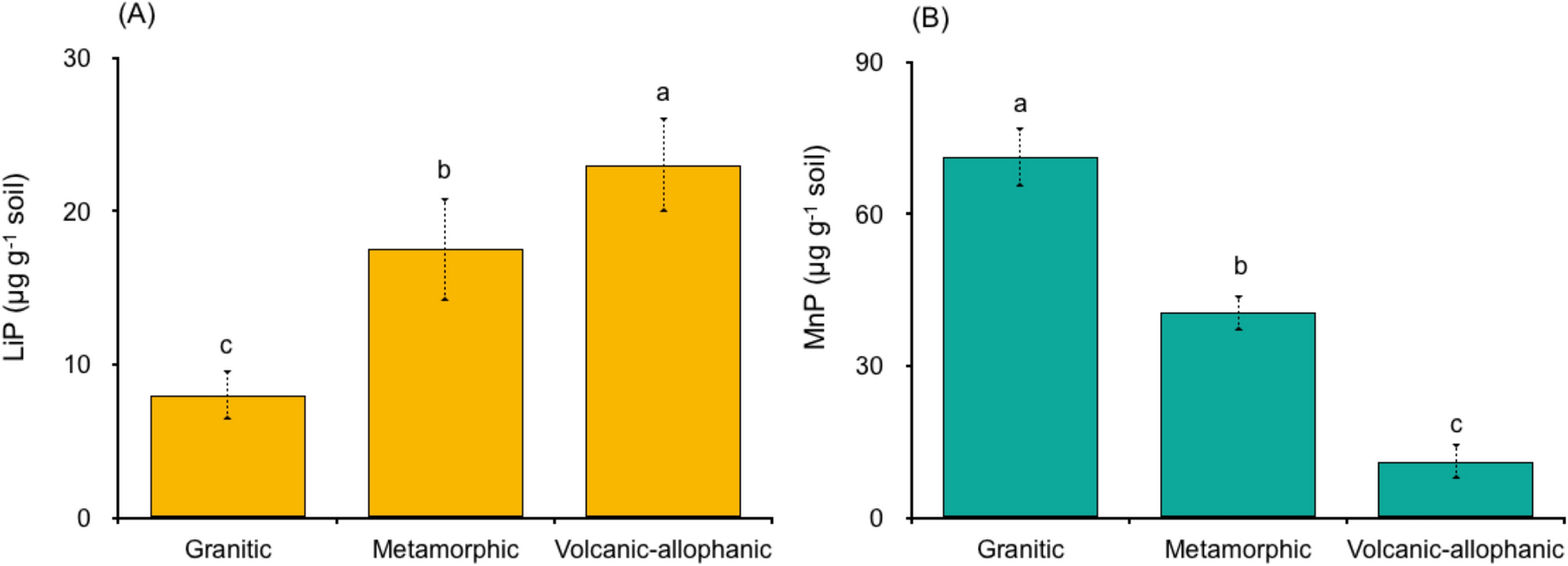

(A) Enzyme activity of lignin peroxidase (LiP) and (B) manganese peroxidase (MnP) in sterilized soils derived from granitic, metamorphic and volcanic-allophanic soils incubated at 20 °C for 36 h under anaerobic conditions. Note the y-axes of different scales. Bars with different letters shown in each panel indicate significant differences (p < 0.05).
