Figure 1

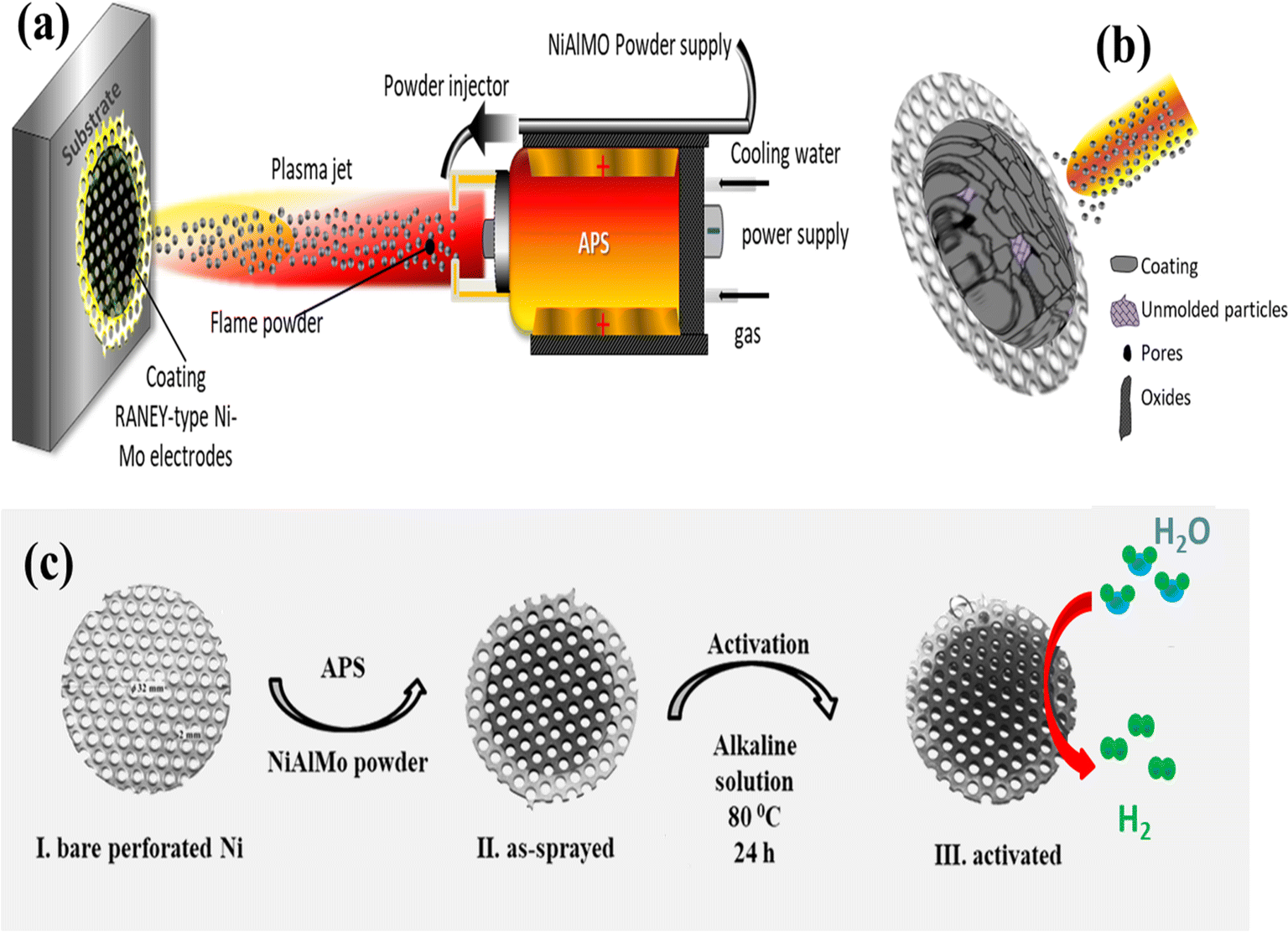

(a) Schematic illustration of APS coating of Raney-type Ni–Mo electrode on perforated nickel sheet. (b) Schematic structure of a thermal sprayed coating. (c) Coating process and chemical activation of Raney-type Ni–Mo electrodes.
