Figure 5

From: Environmental enrichment during forced abstinence from cocaine self-administration opposes gene network expression changes associated with the incubation effect

Figure 5

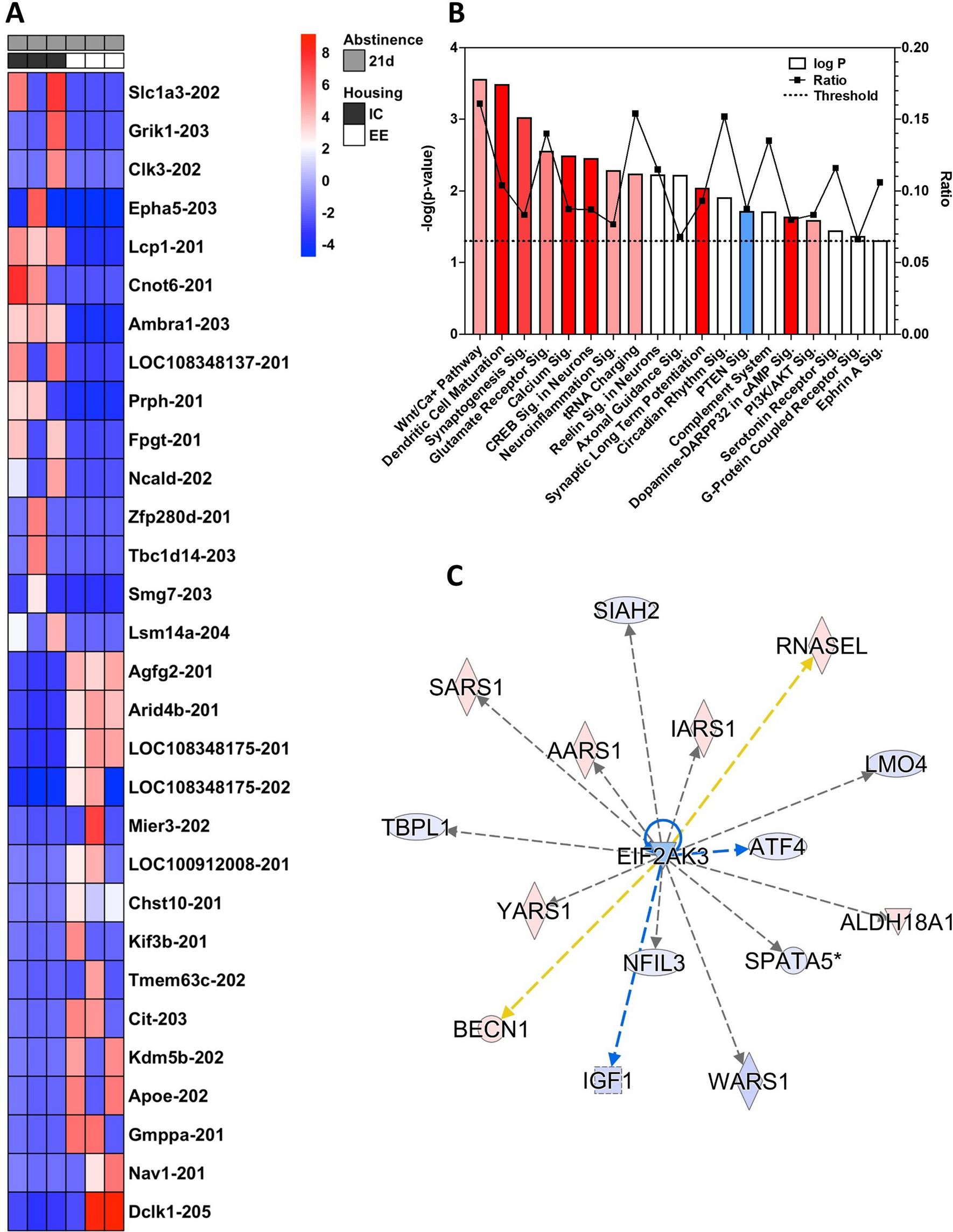

Enrichment-regulated transcripts. (A) The top 30 up- and down-regulated transcripts due to enrichment. (B) A selection of top canonical pathways found using IPA analysis. Blue = negative z-score; red = positive z-score; white = z-score = 0. Ratio: percentage of transcripts in the pathway targeted. Sig.: Signaling Pathway (C) EIF2AK3 was predicted as a top upstream regulator and is known to regulate protein translation. The color intensity of the symbols represents the fold change of up- (red) or downregulation (blue) of each gene by the Enrichment effect.
