Figure 4

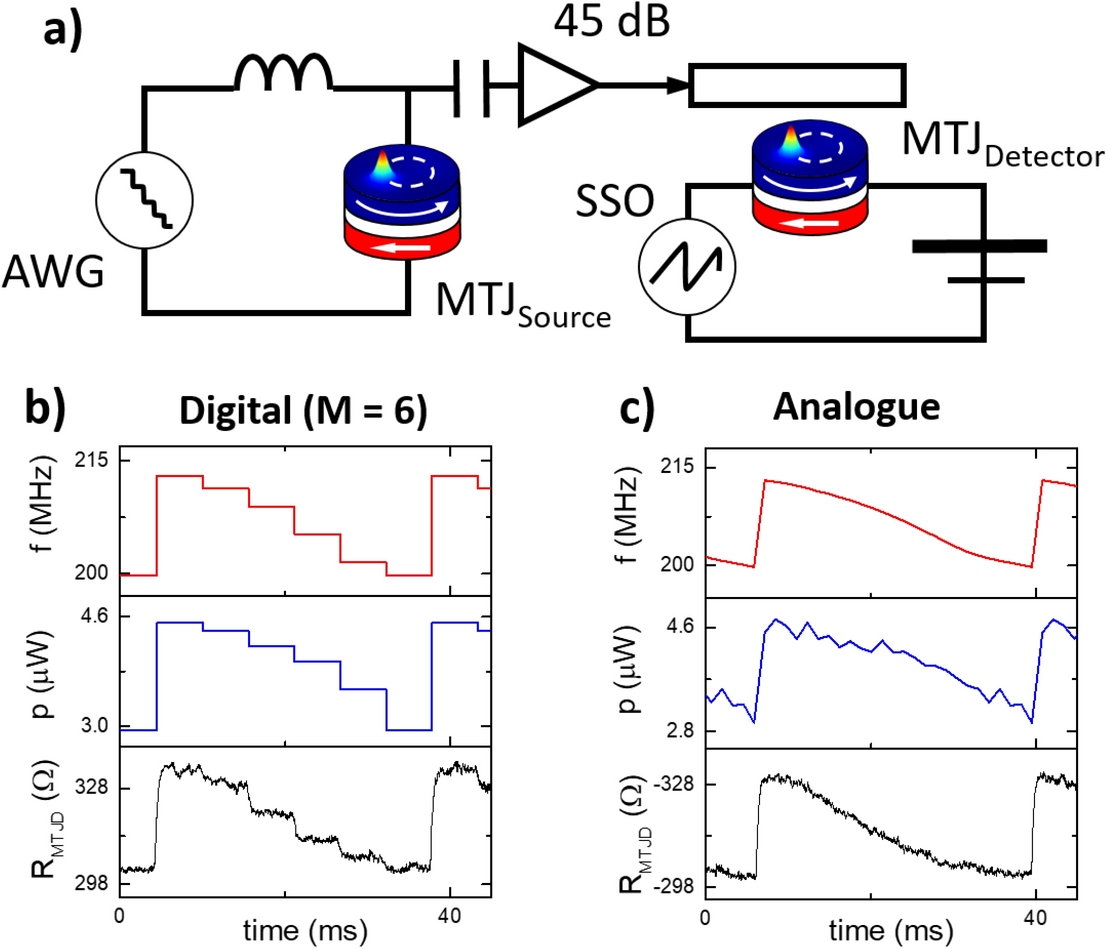

(a) STNO based modulation and demodulation scheme with (b) six discrete dynamic states and (c) analogue variation of frequency and power and the resultant resistance measured across the MTJdetector as a function of time.
