Figure 4

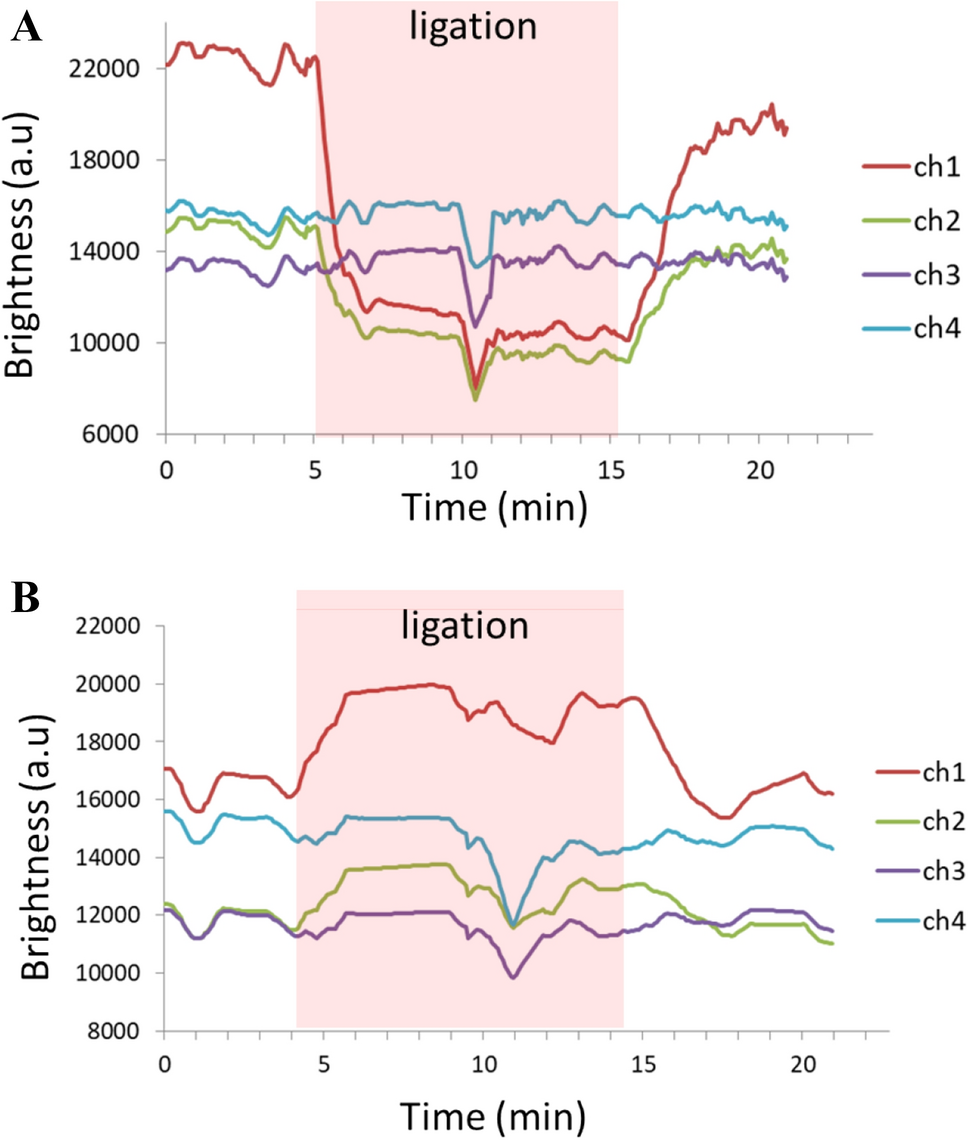

Calculated brightness of the compromised circulation model. Data from the four sensor channels for (A) the congestion model and (B) the ischemia model corresponded to the raw data in Fig. 3. Channels 1 and 2 measured the groin flap and channels 3 and 4 measured the control tissue. The recorded ligation time is marked by the red shaded zone.
