Figure 8 | Scientific Reports

Figure 8

From: Therapeutic vaccine-mediated Gag-specific CD8+ T-cell induction under anti-retroviral therapy augments anti-virus efficacy of CD8+ cells in simian immunodeficiency virus-infected macaques

Figure 8

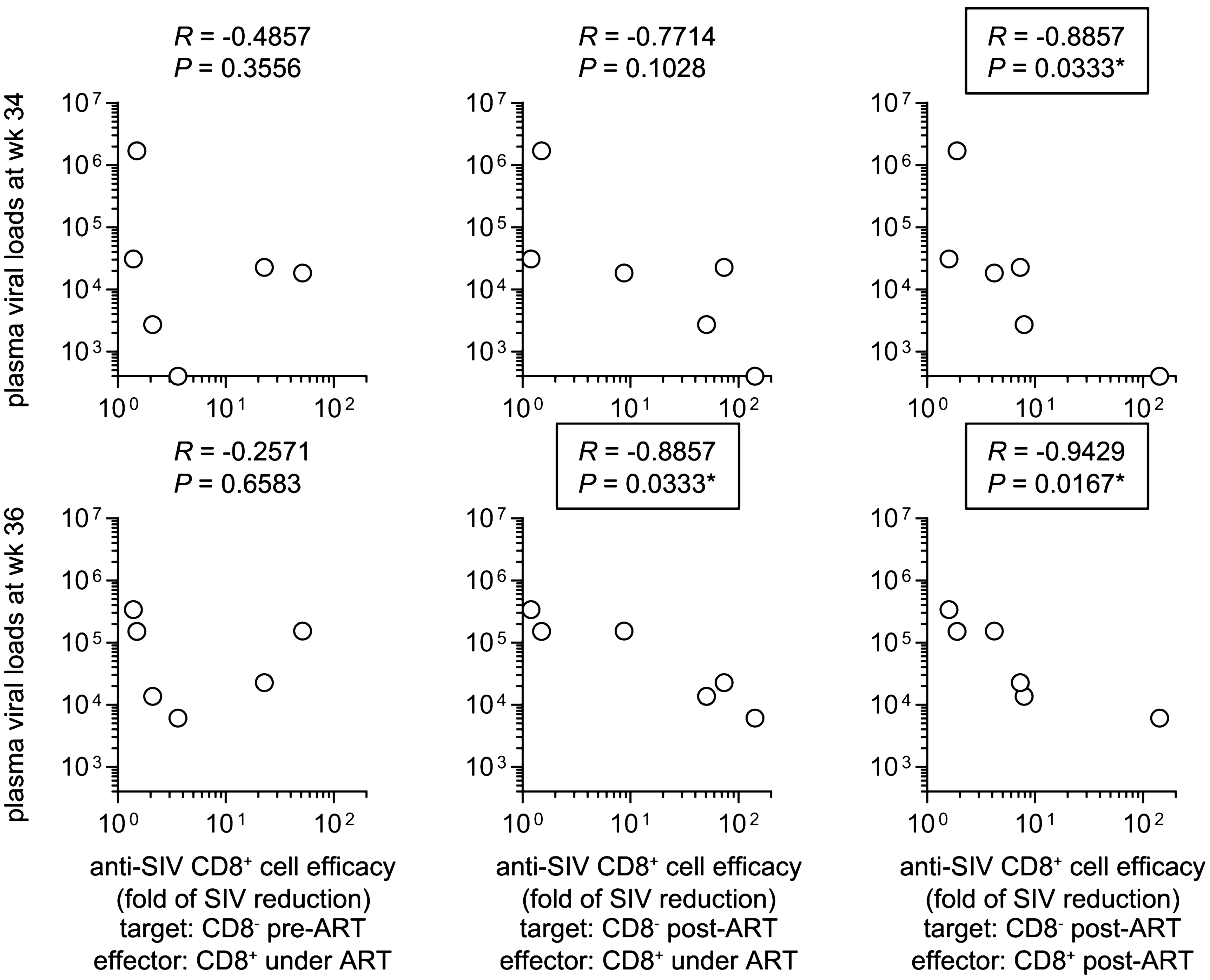

Correlation analyses between anti-SIV CD8+ cell efficacy and plasma viral loads in the vaccinated animals. Correlation analysis between anti-pre-ART SIV efficacy of CD8+ cells under ART (left panels) or anti-post-ART SIV efficacy of CD8+ cells under ART (middle panels) or post-ART (right panels) and viral loads at week 34 (upper panels) or 36 (lower panels) post-infection.
