Figure 3
From: The discovery of a new antibody for BRIL-fused GPCR structure determination

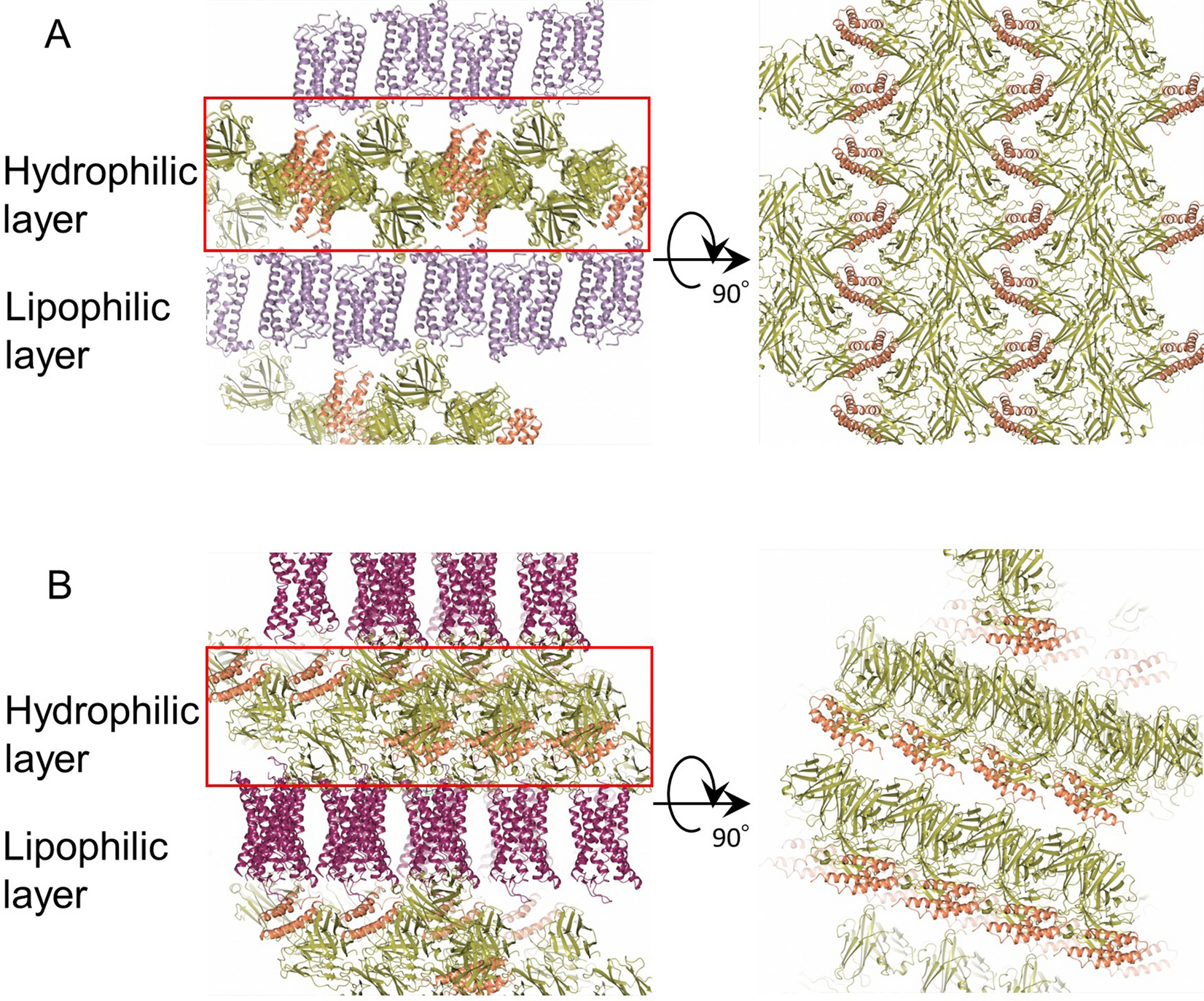

Crystal packing of 5HT1B-BRIL/ERG/SRP2070Fab and AT2R-BRIL/s-Ang II/SRP2070Fab. (A) The crystal packing of 5HT1B-BRIL/ERG/SRP2070Fab is shown from two directions. Each molecule is coloured as follows: 5HT1B (light purple), BRIL (light brown), SRP2070Fab (green). (B) The crystal packing of AT2R-BRIL/s-Ang II/SRP2070Fab is shown from two directions. Each molecule is coloured as follows: AT2R (purple), BRIL (light brown), SRP2070Fab (green).
