Figure 10
From: Muographic monitoring of the volcano-tectonic evolution of Mount Etna

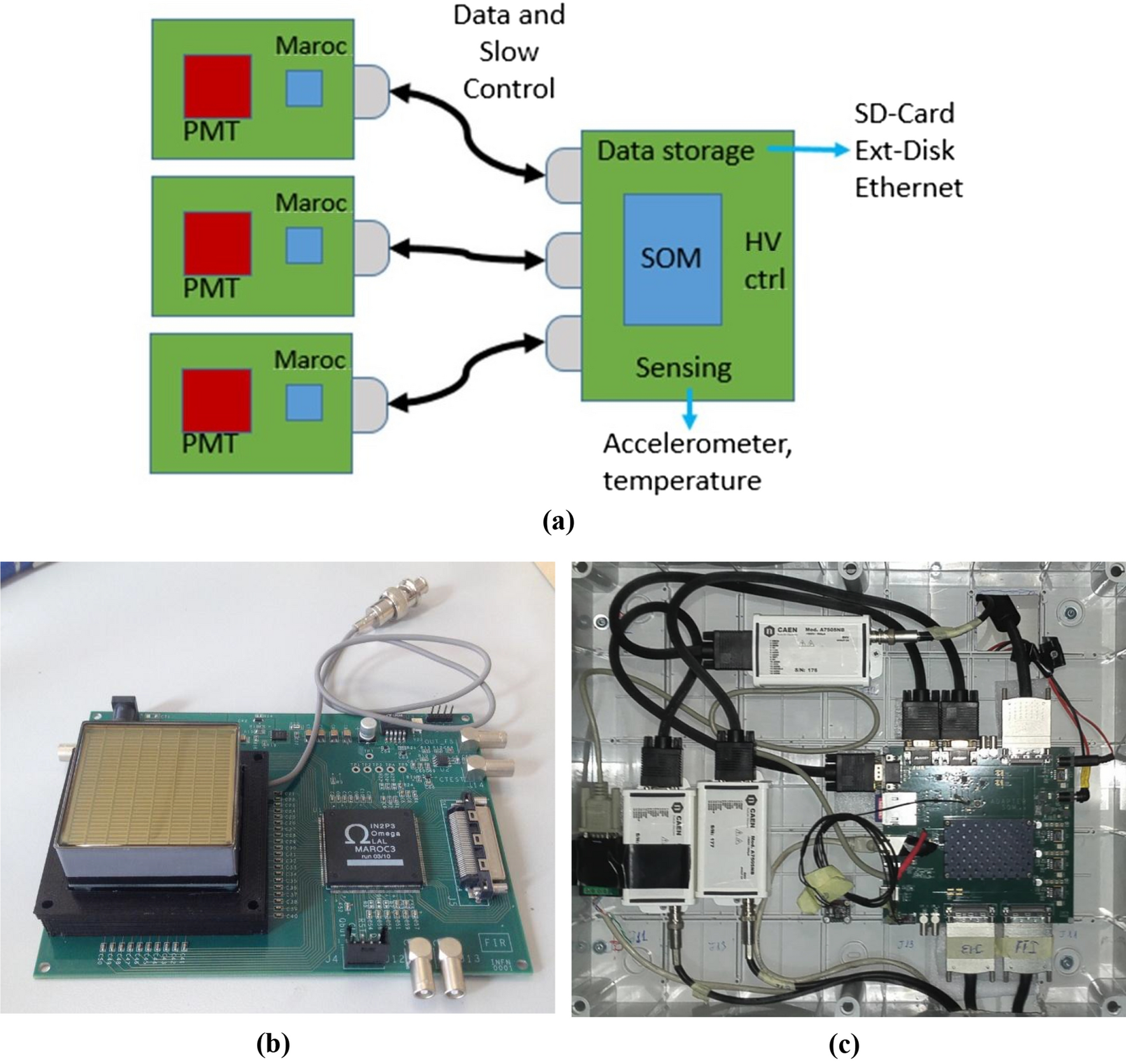

(a) Block diagram of the electronic chain of the telescope. (b) A front-end board equipped with a Hamamatsu H8500 64 channels MAPMT. (c) A photo of the read-out board placed inside a plastic box with the modules for MAPMTs power supply.
