Figure 1

From: Exploring the wound healing, anti-inflammatory, anti-pathogenic and proteomic effects of lactic acid bacteria on keratinocytes

Figure 1

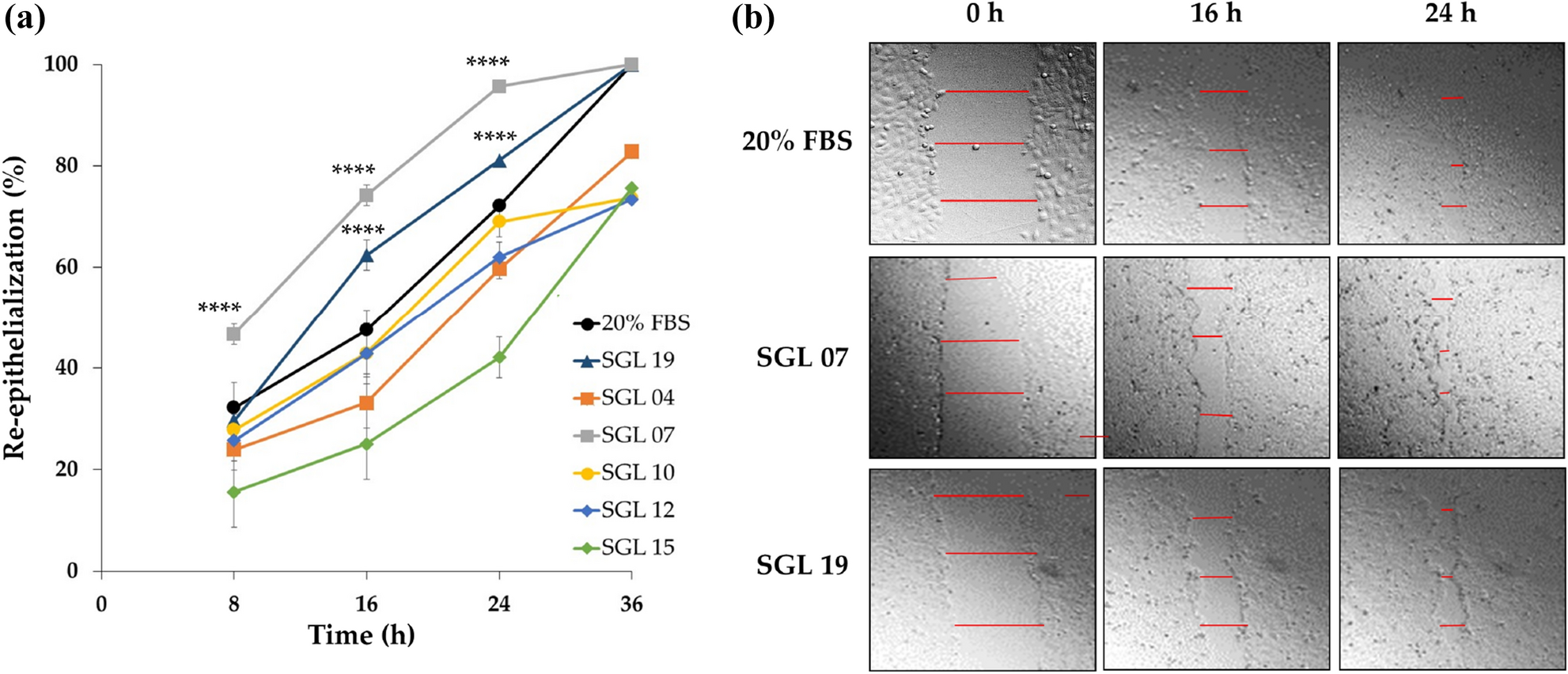

Specific LAB lysates stimulate keratinocyte re-epithelialization in vitro. (a) The graph shows the percentage of re-epithelialization in keratinocytes treated with/without LAB lysates for 8, 16, 24 and 36 h. Results are expressed as the mean ± SEM, ****p < 0.0001. (filled circle) positive control (20% FBS); (filled rectangle) L. paracasei SGL 04; (open rectangle) L. plantarum SGL 07; (open circle) L. fermentum SGL 10; (filled diamond) L. brevis SGL 12; (open diamond) L. casei SGL 15; (filled triangle) L. salivarius SGL 19. (b) Representative images (magnification, × 200) of wound closure at 0, 16 and 24 h in the presence of positive control, L. salivarius SGL 19 and L. plantarum SGL 07. Red lines indicate the distances used to calculate the % of re-epithelialization of showed representative images.
