Figure 2

From: Experimental determination and ray-tracing simulation of bending losses in melt-spun polymer optical fibres

Figure 2

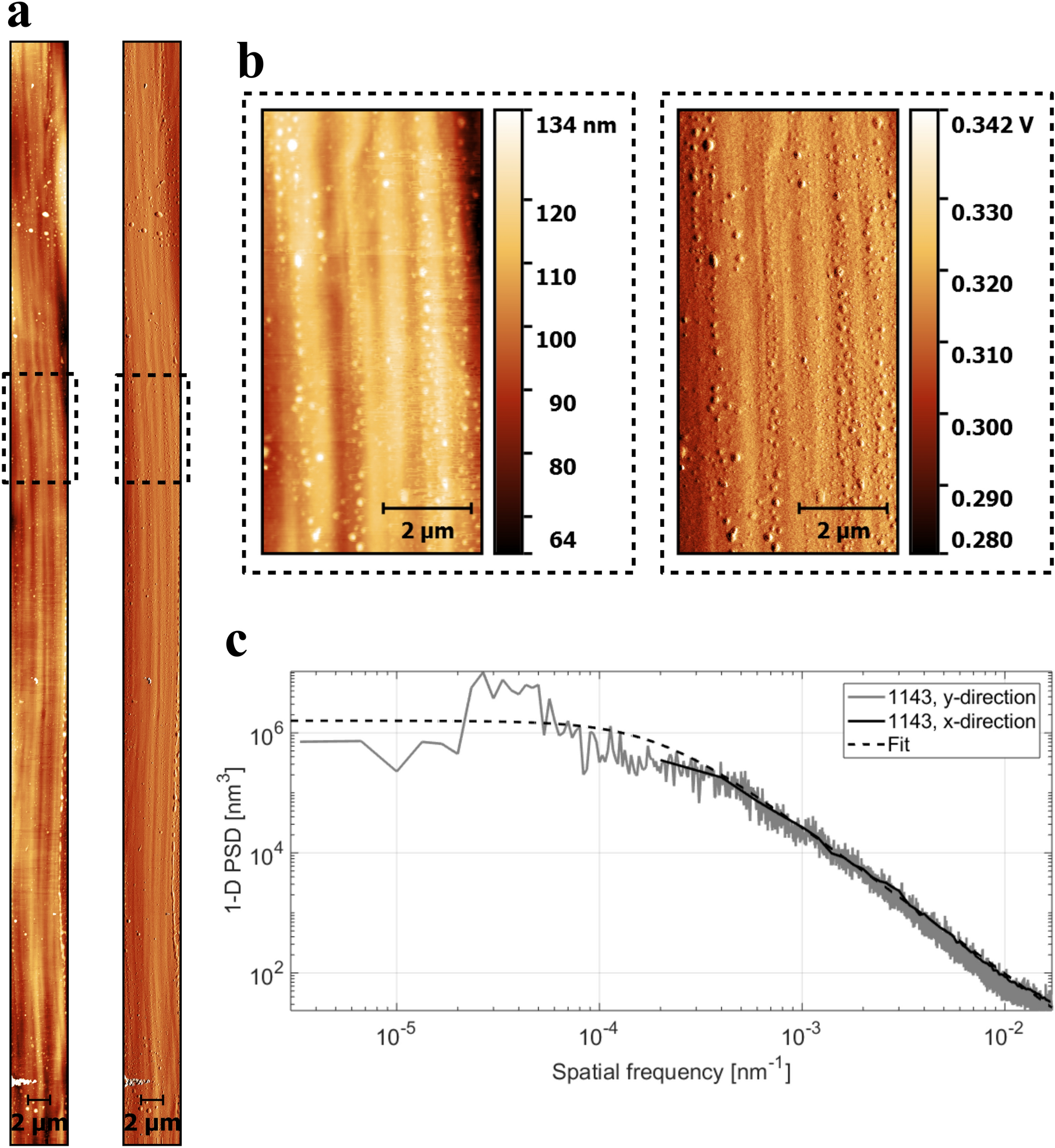

Exemplary atomic force microscopy (AFM) analysis of fibre 1143 at one location. (a) Full range AFM image (left: height, right: amplitude). (b) Zoom-in of the height and amplitude AFM images in the indicated (5 × 10) µm2 section. The depicted height mode AFM images were further treated by a median of differences row alignment. (c) PSD along x- and y-directions for fibre 1143, together with the corresponding ABC-fit curves. The data for fibre 1144 may be found in Figure S1.
