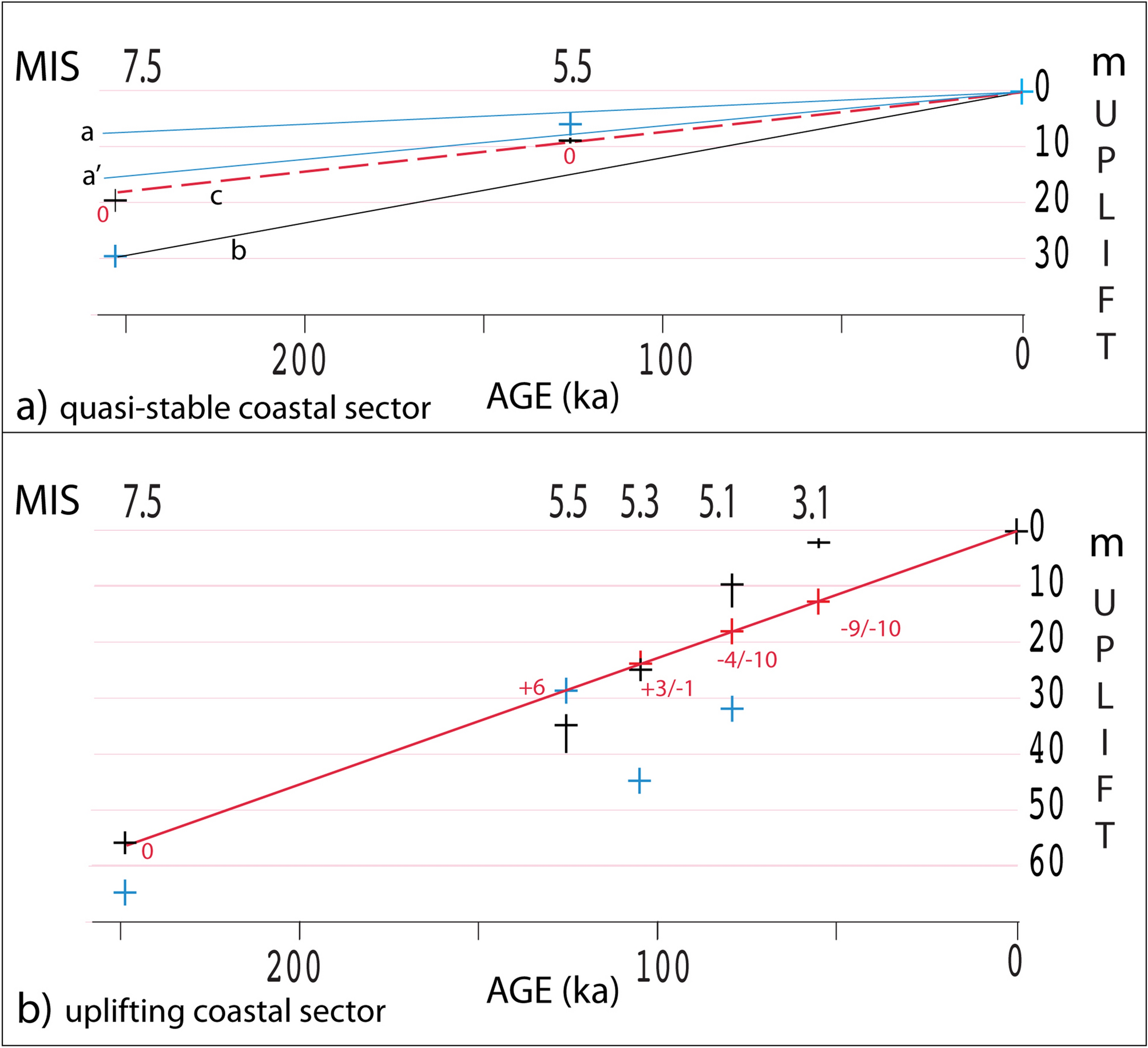

Figure 8
(a) Uplift curves based on sea-level elevations (black crosses) correlated with MIS 5.5 and MIS 7.5 inferred by tidal notches at 9.6 and 20 m a.s.l. occurring at the Circeo promontory21,26 ; blue crosses: sea-level correction according to current literature12. (b) Uplift curve based on sea-level elevations (black crosses; vertical bar includes the associated error) correlated with MIS 3.1 through MIS 7.5 inferred from the marine terraces of the Latium coast10; red crosses: sea-level elevation after correction for the absolute maximum sea level at each interglacial calculated assuming a constant uplift rate during the last 250 ka; blue crosses: sea-level correction according to current literature12. See text for explanation.
