Figure 2

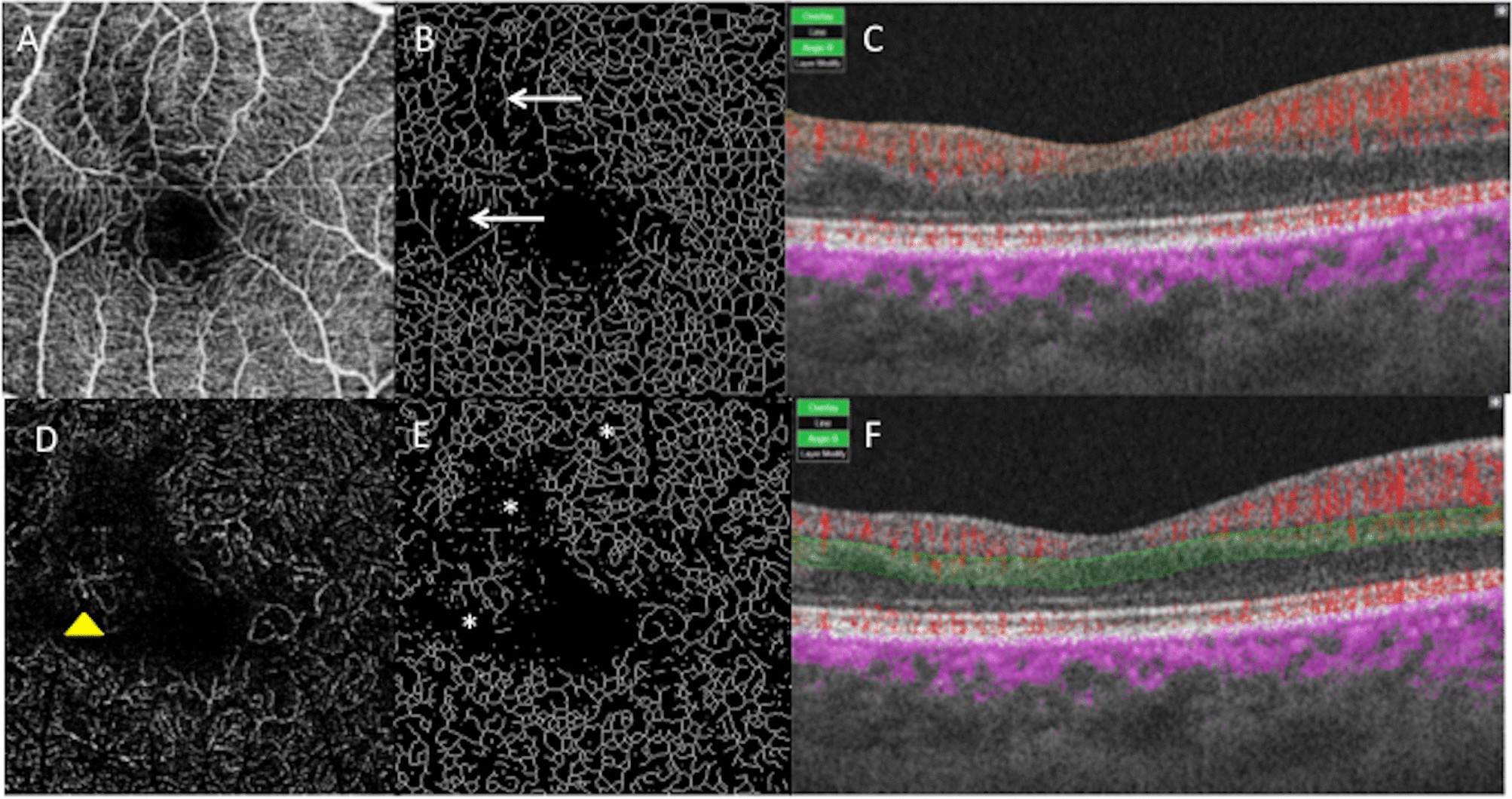

Right eye of a patient with sickle cell disease (SC). (A) OCTA of the SCP. (B) Image of the SCP obtained after skeletonization. The white arrows are pointing the area of rarefied capillary. (C) B-scan showing the limits of segmentation in orange. Blood flow appears in red. (D) DCP of the same eye. A dilated capillary is pointed by a yellow arrow-head. (E) Image of the DCP obtained after skeletonization. The white stars are localized in the area of rarefied capillary. (F) B-scan showing the limits of segmentation in green. Blood flow appears in red.
