From: Gear-like rotatable optical trapping with radial carpet beams

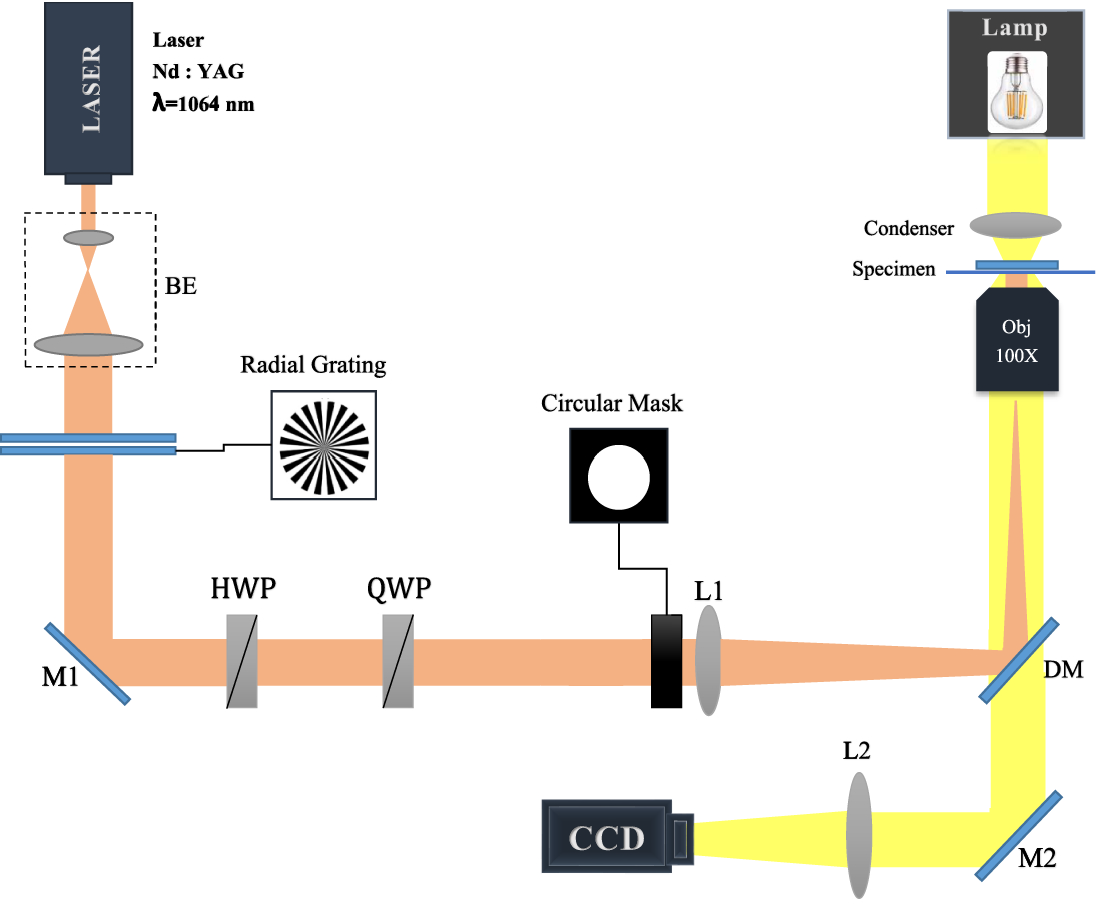

Experimental setup; BE, M, HWP, QWP, L, DM, and QPD are the beam expander, mirror, half and quarter wave plates, lens, dichroic mirror, and quadrant photo diode, respectively.
