From: Transcriptomic and network analyses reveal distinct nitrate responses in light and dark in rice leaves (Oryza sativa Indica var. Panvel1)

Figure 3

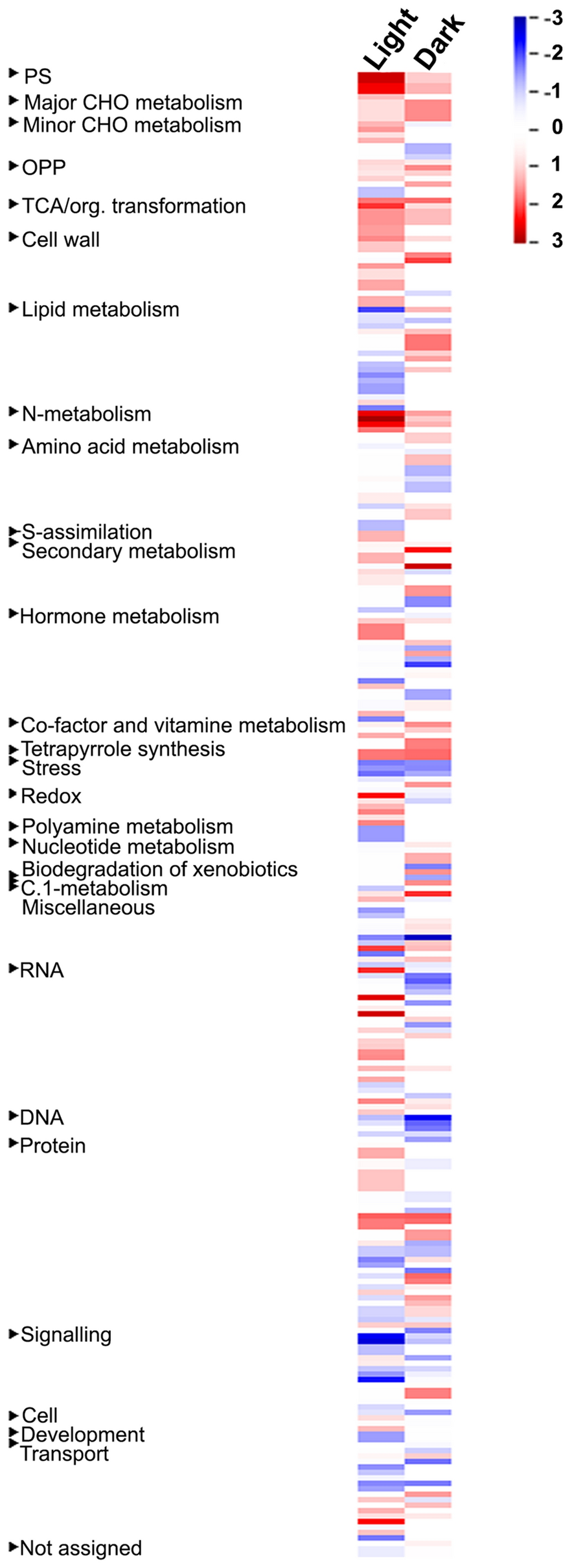

PageMan analyses of nitrate-responsive transcripts differentially expressed between light and dark conditions. Over- and under-represented nitrate-responsive pathways in light and dark conditions were analyzed in PageMan (https://mapman.gabipd.org/pageman) using Wilcoxon algorithm with default parameters. Bin names are shown to the left of the image and treatment conditions are mentioned at the top of the image. Significant functional groups are indicated by either red (over-represented) or blue (under-represented) colour according to the scale and details are provided in Fig. S3.
