Figure 1

From: Molecular evidence for the involvement of cotton GhGLP2, in enhanced resistance to Verticillium and Fusarium Wilts and oxidative stress

Figure 1

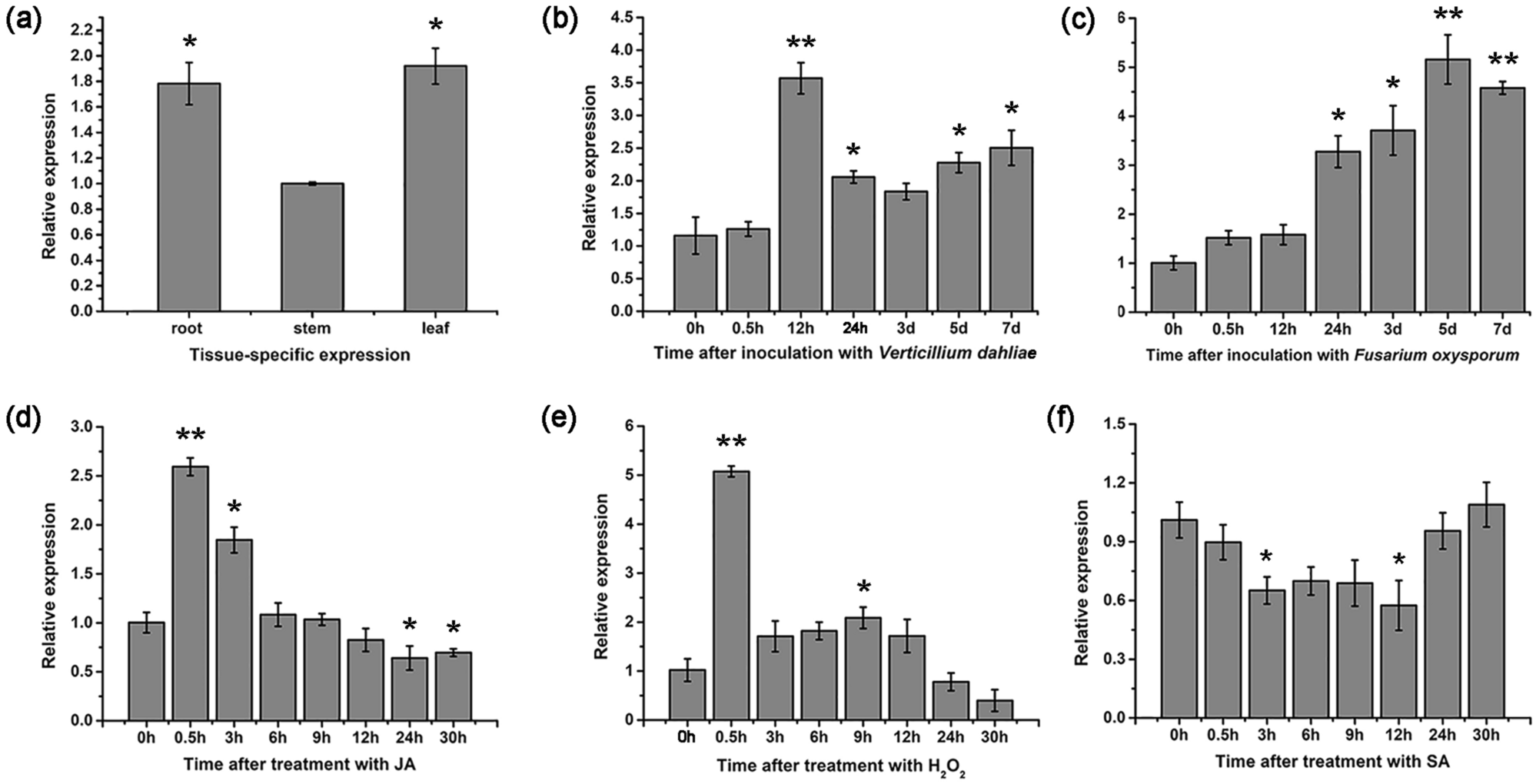

The expression patterns of GhGLP2 gene under different conditions. (a) Tissue-specific expression of GhGLP2 in cotton. (b–f) GhGLP2 expression after inoculation with Verticillium dahliae (b) and Fusarium oxysproum (c), and upon treatment with JA (d), H2O2 (e), and SA (f). GhGLP2 expression was quantified by qRT-PCR and compared to control. Data were collected from three independent biological samples per treatment and three technical replicates per samples. Error bars represent standard error. Asterisks indicate a significant difference compared with control (*P < 0.05, **P < 0.01, Student’s t-test).
