Figure 4
From: High frequency response of thick REBCO coated conductors in the framework of the FCC study

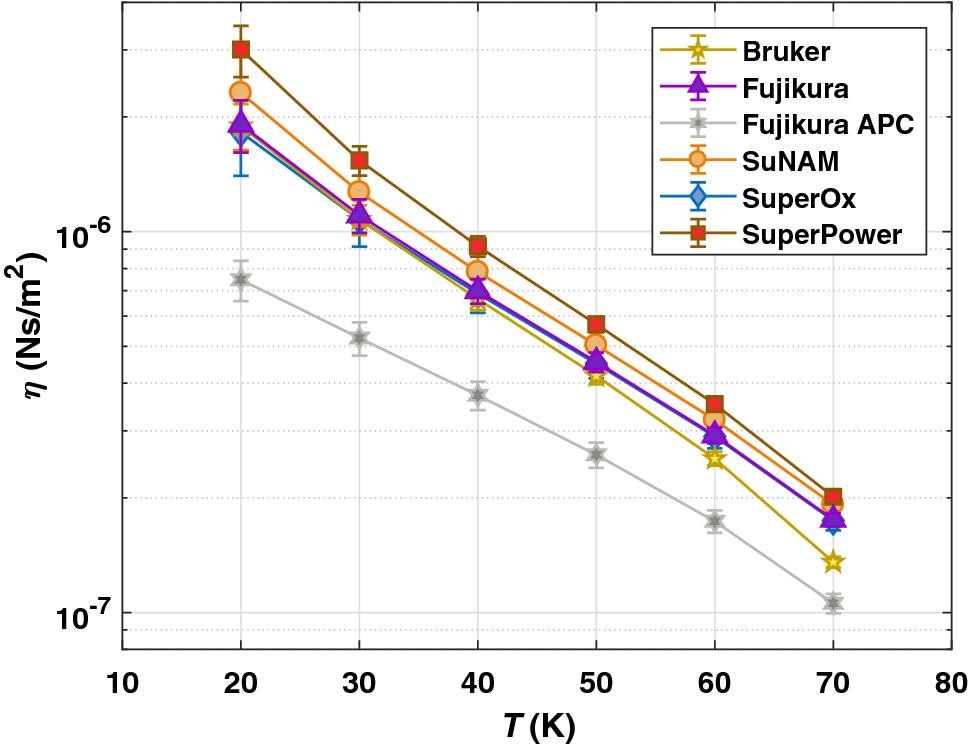

Vortex viscosity for all CCs but Theva determined from Eq. (12) at \(T = {20 {-} 70}\, {\text {K}}\). The solid lines are guides for the eyes.
