Figure 2

From: The contribution of photosynthesis traits and plant height components to plant height in wheat at the individual quantitative trait locus level

Figure 2Figure 2

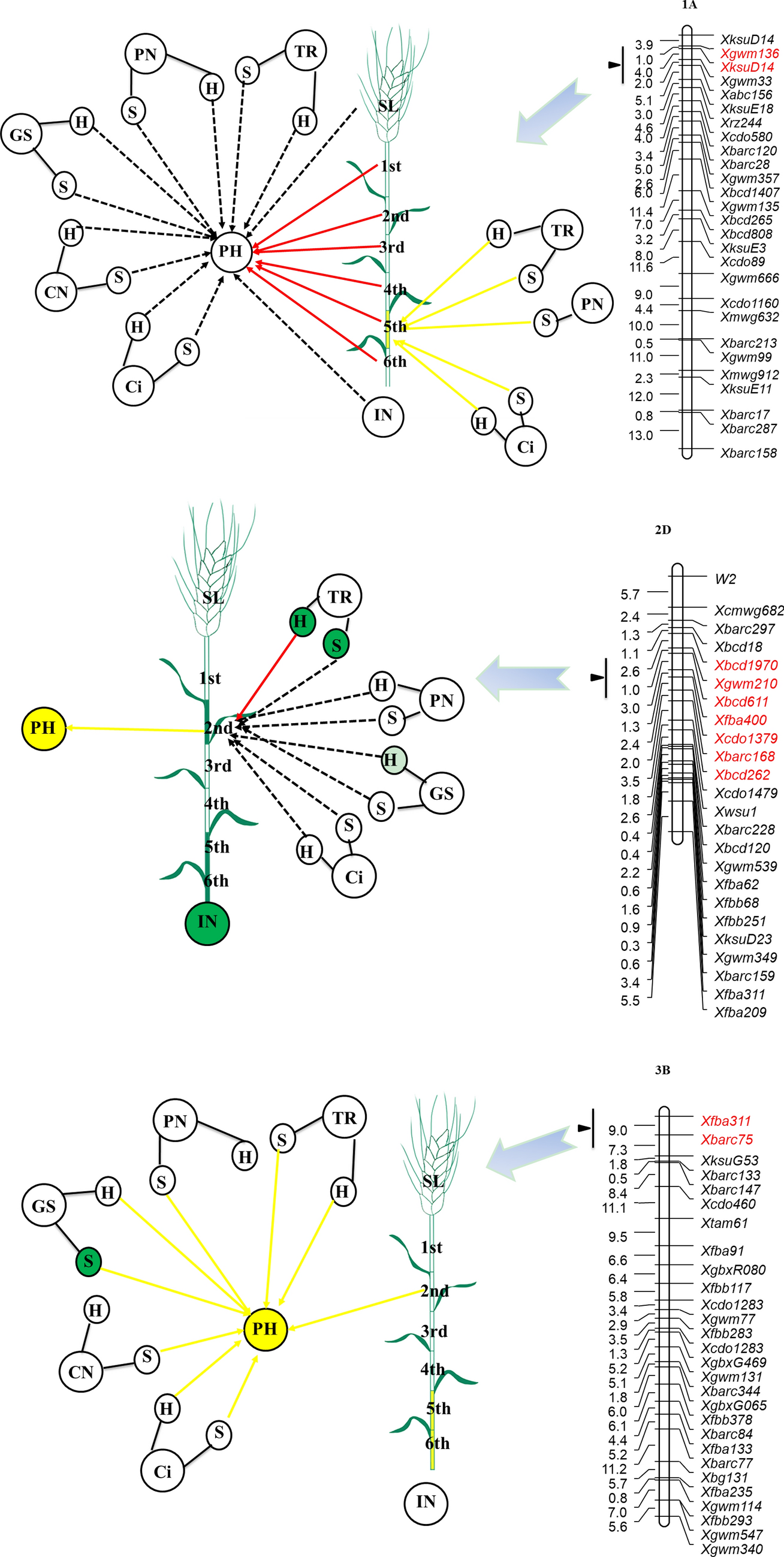

QTL clusters carried normal QTL or conditional QTL for plant height. Traits are plant height (PH); spike length (SL); internode number (IN); length of first internode from the top (1st); length of second internode from the top (2nd); length of third internode from the top (3rd); length of fourth internode from the top (4th); length of fifth internode from the top (5th); length of sixth internode from the top (6th); chlorophyll content (CN); net photosynthetic rate (PN); stomatal conductance (GS); intercellular CO2 concentration (Ci); transpiration rate (TR); respectively. S and H indicating seedling stage and heading stage respectively. The networks are comparison of conditional QTL and normal QTL analysis. Yellow arrow indicated suppression between plant height components or photosynthetic traits with plant height, or photosynthetic traits with plant height components, whereas the red arrow indicated positive contribution between two traits. Dotted arrow indicated independent relationship between two traits. Traits with green background or green internode indicated normal QTLs were identified, whereas traits with yellow background or yellow internode indicated only conditional QTLs were identified.
