Figure 2
From: Systemic lipid dysregulation is a risk factor for macular neurodegenerative disease

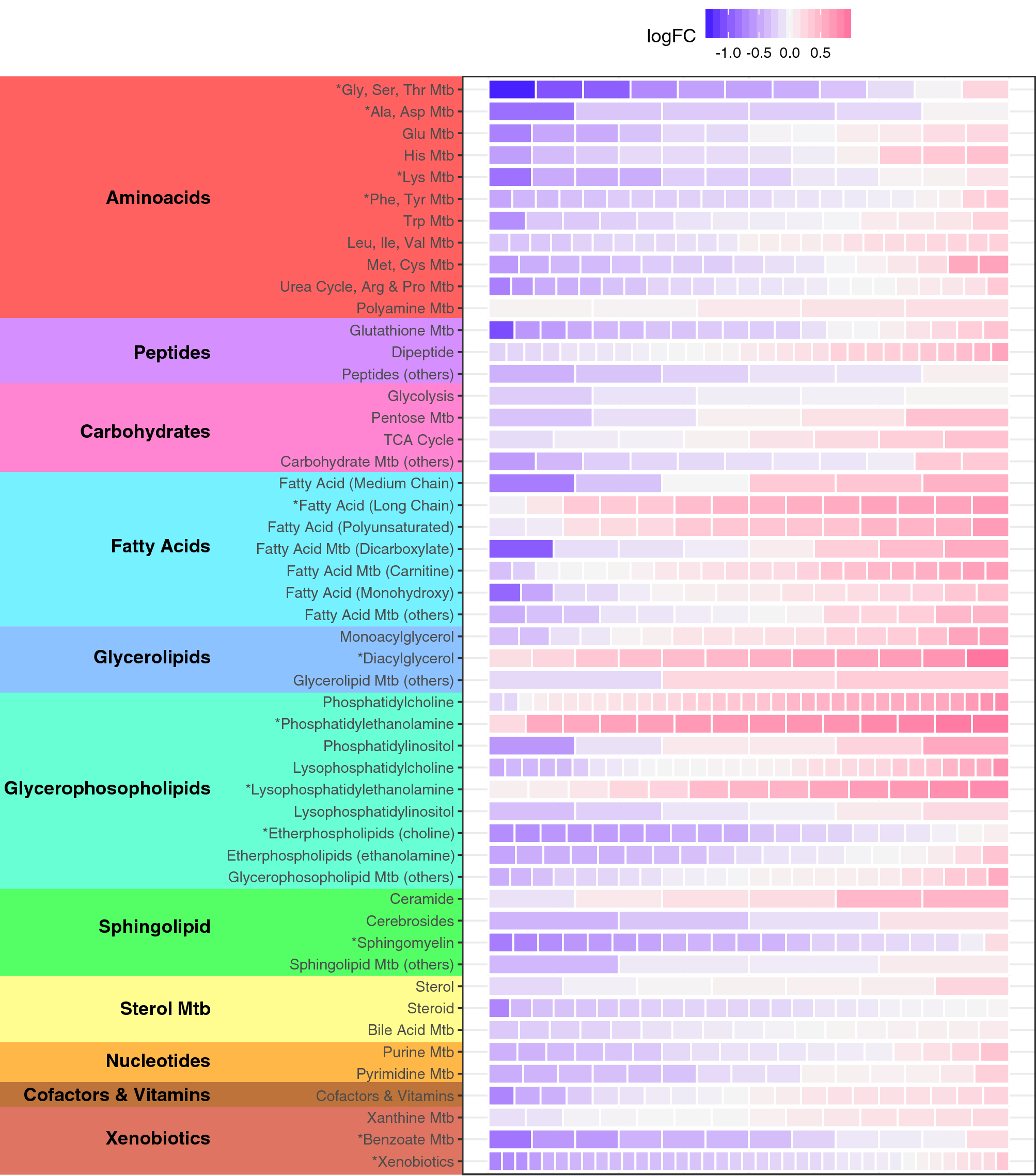

Changes in abundance of 738 metabolites across the 50 metabolic groups. Each row represents a metabolic group. Significantly enriched metabolic groups are labelled with * for p < 0.05 (corrected for FDR). Each group row is composed of blocks representing metabolites contained in the group. The colour of each block represents the Log2 Fold-Change (logFC) of that metabolite comparing patients against controls. The colour blue represents depletion and magenta represents increased abundance. Mtb metabolism.
