From: Sierra Nevada sweep: metagenomic measurements of bioaerosols vertically distributed across the troposphere

Figure 3

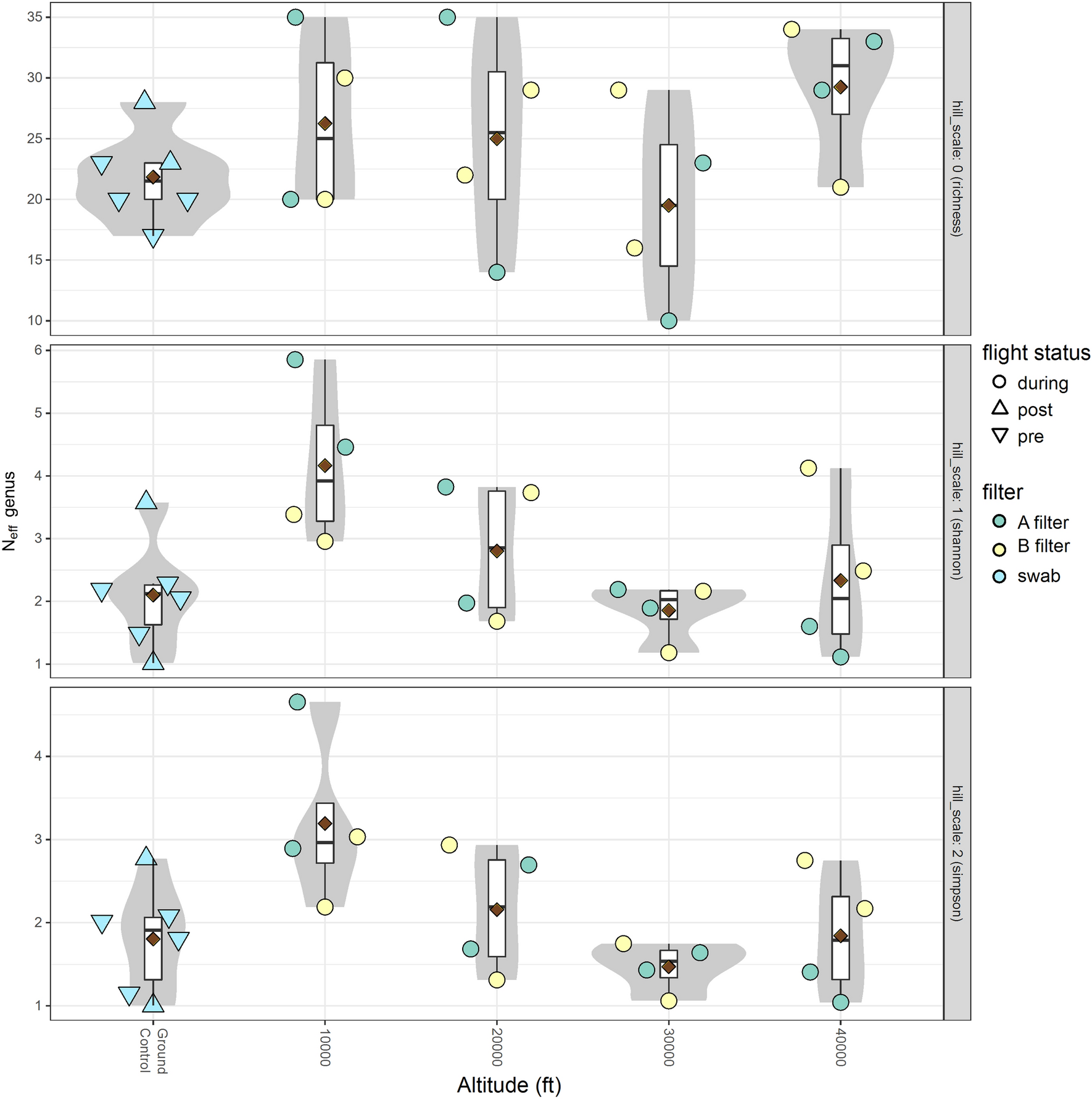

Alpha (α)-diversity for flight and ground samples at genus level resolution. α-diversity quantified as 1Neff with samples shown as circles. The area of each circle is proportional to the number of genus-resolved fragments in a sample. Violin plots show density of α-diversity, box plots show the first, second and third quartiles, and 1.5 times the interquartile range of each time point’s α-diversity sample distribution. Dark red diamonds represent the means. The figure was generated in R (v.3.6.0)53 using package ggplot2 (v.3.2.1)54.
