Figure 11

From: Ultrafast synthesis of carbon quantum dots from fenugreek seeds using microwave plasma enhanced decomposition: application of C-QDs to grow fluorescent protein crystals

Figure 11

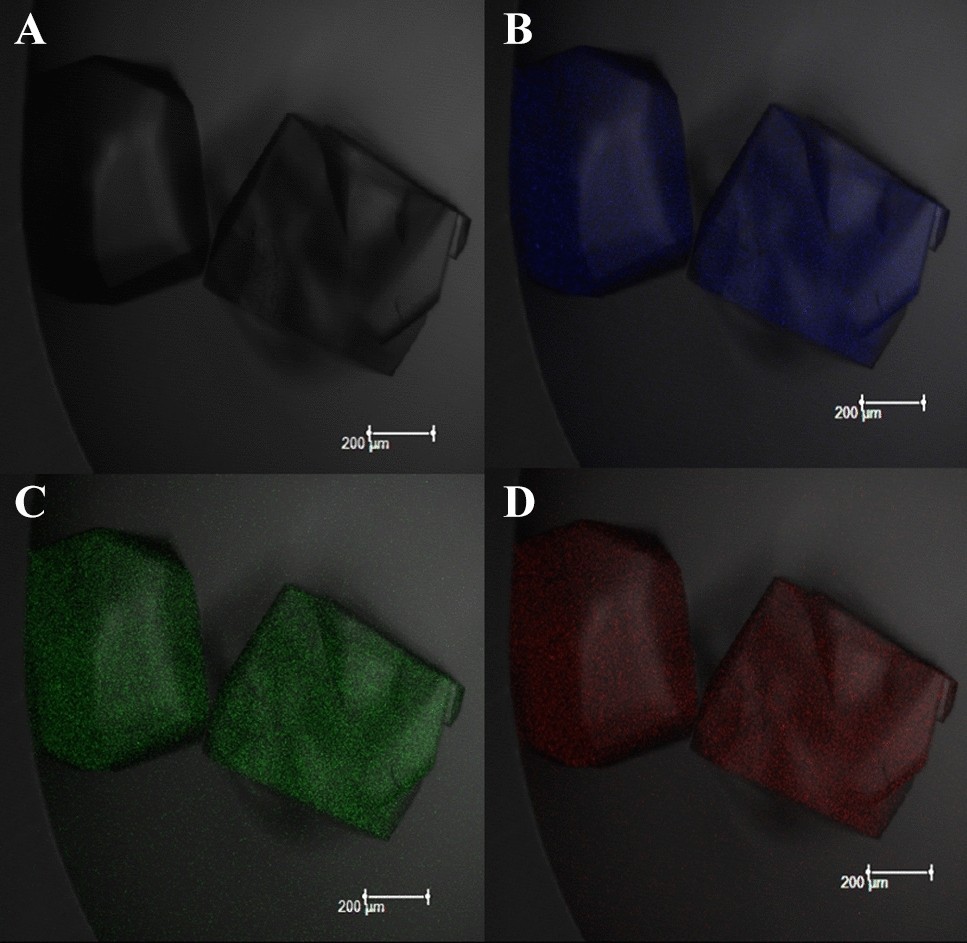

Confocal images of CQD-Lysozyme protein crystal show (A) Optical image of CQD-Lysozyme protein crystal, (B) CQD-Lysozyme protein crystal emit fluorescence in the blue region, (C) CQD-Lysozyme protein crystal emit fluorescence in the green region, (D) CQD-Lysozyme protein crystal emit fluorescence in the red region.
