Figure 9

From: Ultrafast synthesis of carbon quantum dots from fenugreek seeds using microwave plasma enhanced decomposition: application of C-QDs to grow fluorescent protein crystals

Figure 9

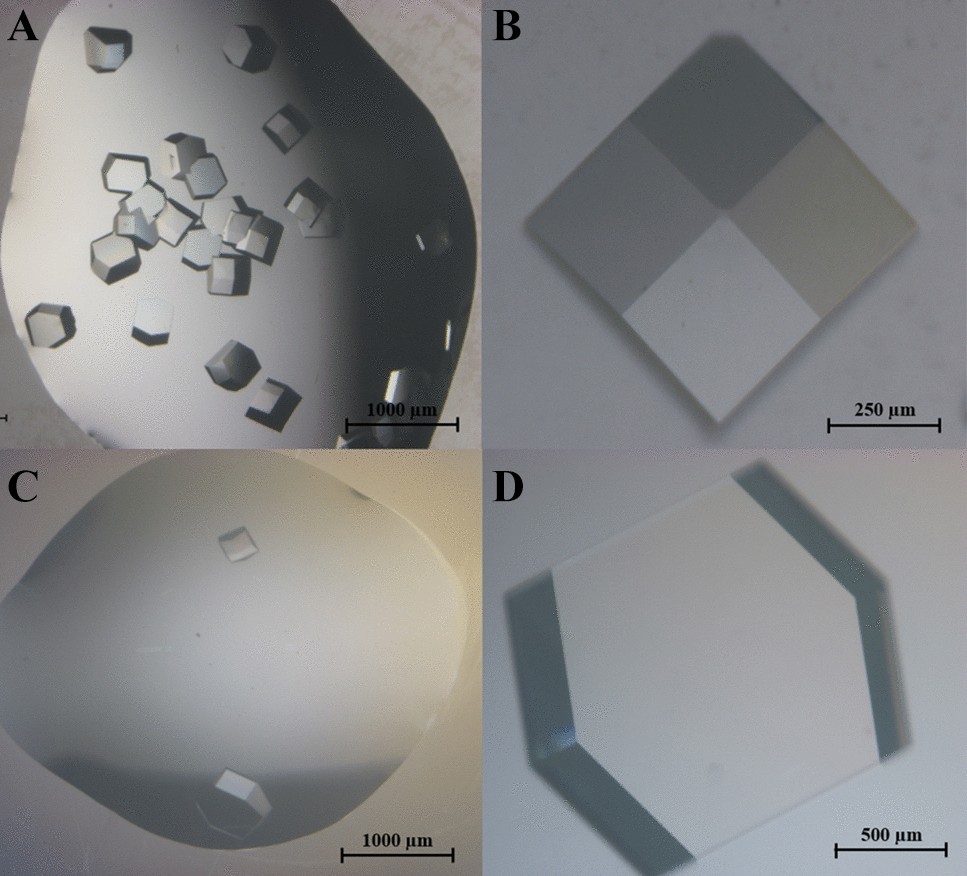

(A) Optical images of as-grown Lysozyme at low resolution that shows high nucleation of crystals (scale bar 1,000 μm), (B) Optical images of as-grown Lysozyme at high resolution (scale bar 250 μm), (C) Optical images of CQD-Lysozyme protein crystal at low resolution that shows lower nucleation of crystals (scale bar 1,000 μm), (D) Optical images of CQD-Lysozyme protein crystal at high resolution (scale bar 500 μm).
