Figure 3 | Scientific Reports

Figure 3

From: River flow prediction in data scarce regions: soil moisture integrated satellite rainfall products outperform rain gauge observations in West Africa

Figure 3

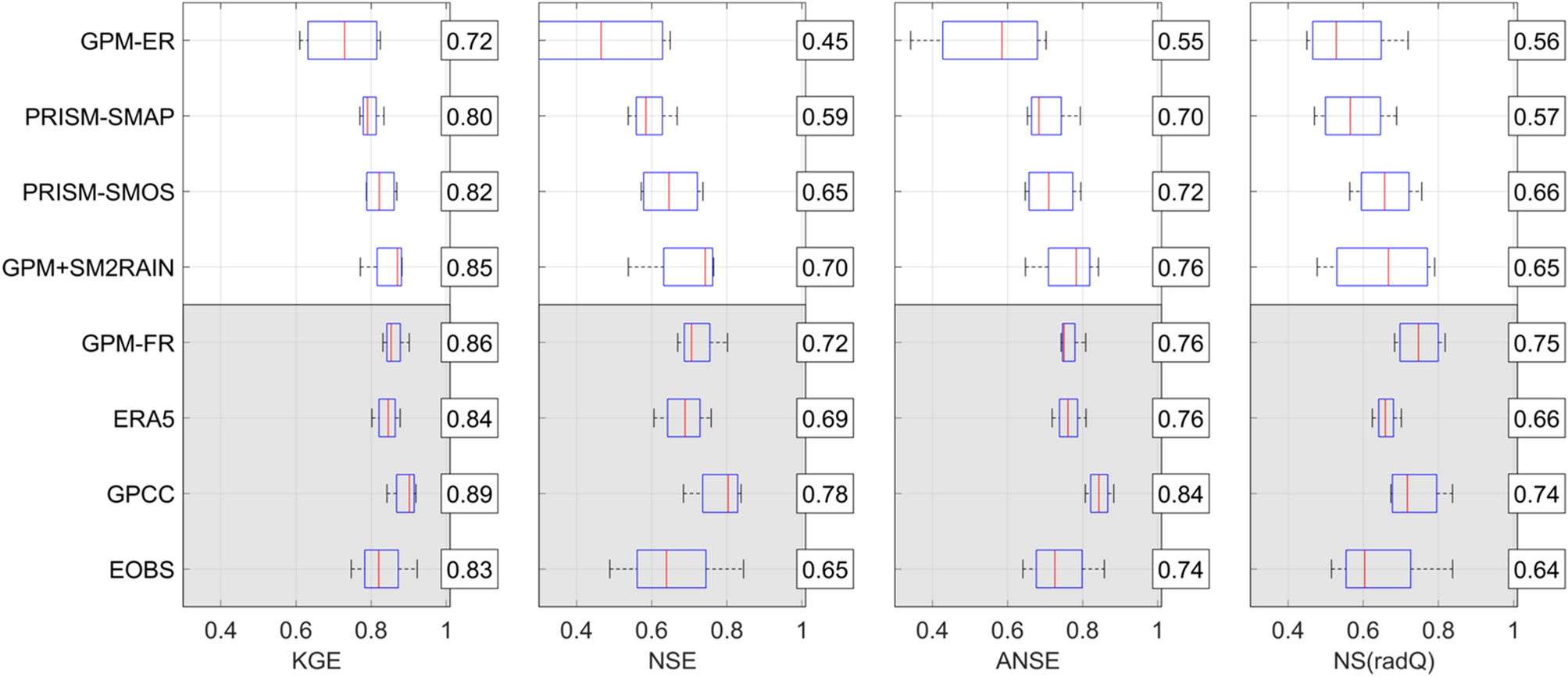

Kling-Gupta Efficiency, KGE, Nash-Sutcliff Efficiency, NSE, NSE for high flows, ANSE, and NSE for low flows, NS(radQ), in the European basins for all products and MISDc model. For each boxplot, the horizontal line represents the median values and the box represents the 25th and 75th percentile, the dotted whiskers extend to the extreme data points and cross symbols represent outliers. The numbers in the boxes represent the mean values. Note that x-axis starts at 0.3 to improve visualization.
