Figure 3
From: The dynamics of gas-bubble formation at saturated conditions in porous media flow

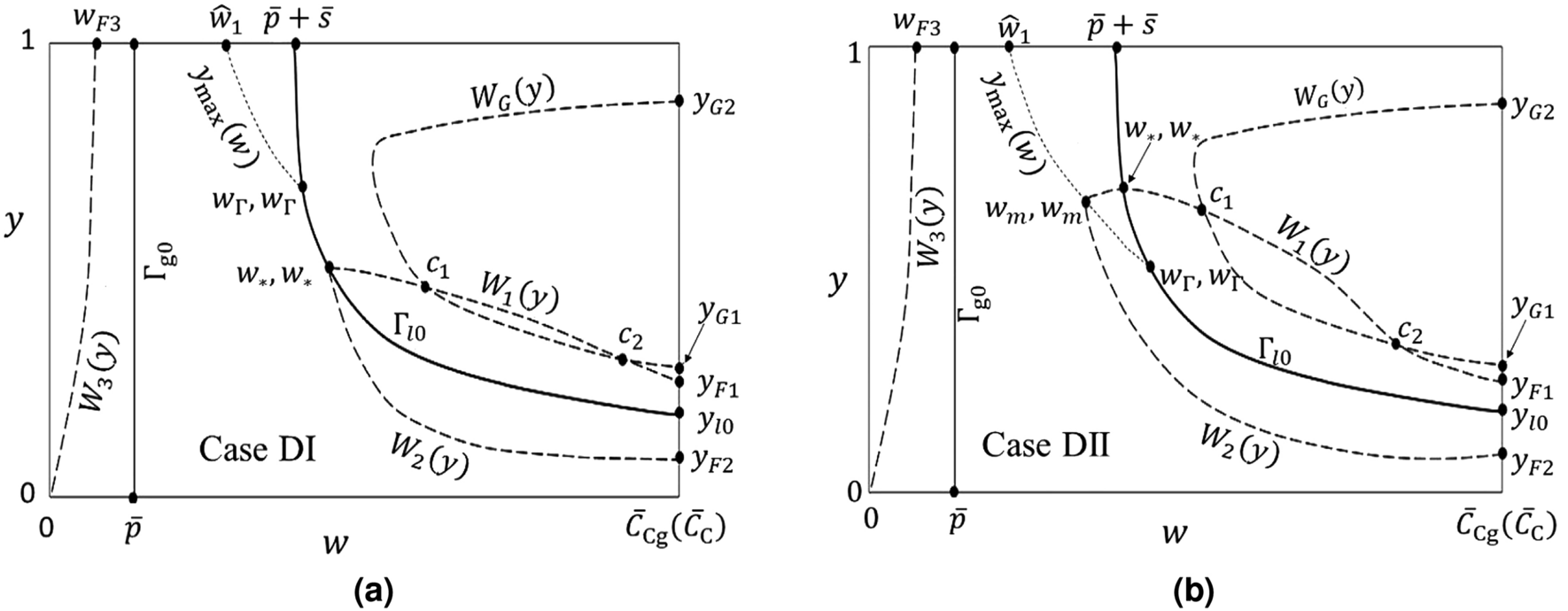

Sketch of the relevant phase space curves and regions discussed in the text and Appendices A to E in the supplementary material. The difference in the curve \(W_2(y)\) in cases DI and DII is discussed in Appendix D.
