Figure 3

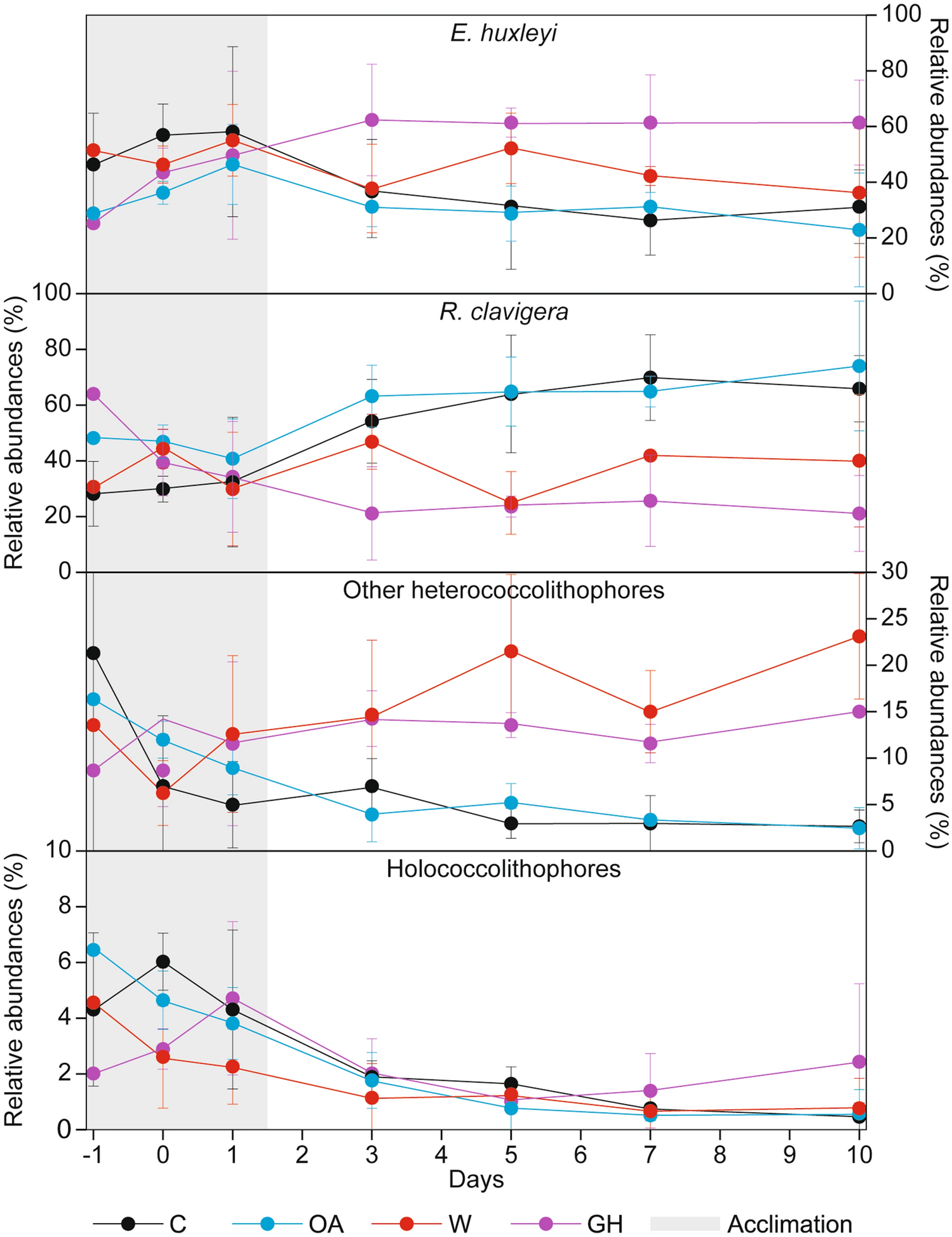

Coccolithophore relative abundances: E. huxleyi (a), R. clavigera (b), all heterococcolithophores except for E. huxleyi and R. clavigera (c), and holococcolithophores (d). The dots and the vertical bars indicate the average and standard deviation values, respectively.
