Figure 2

From: In vivo imaging of the hyaloid vascular regression and retinal and choroidal vascular development in rat eyes using optical coherence tomography angiography

Figure 2

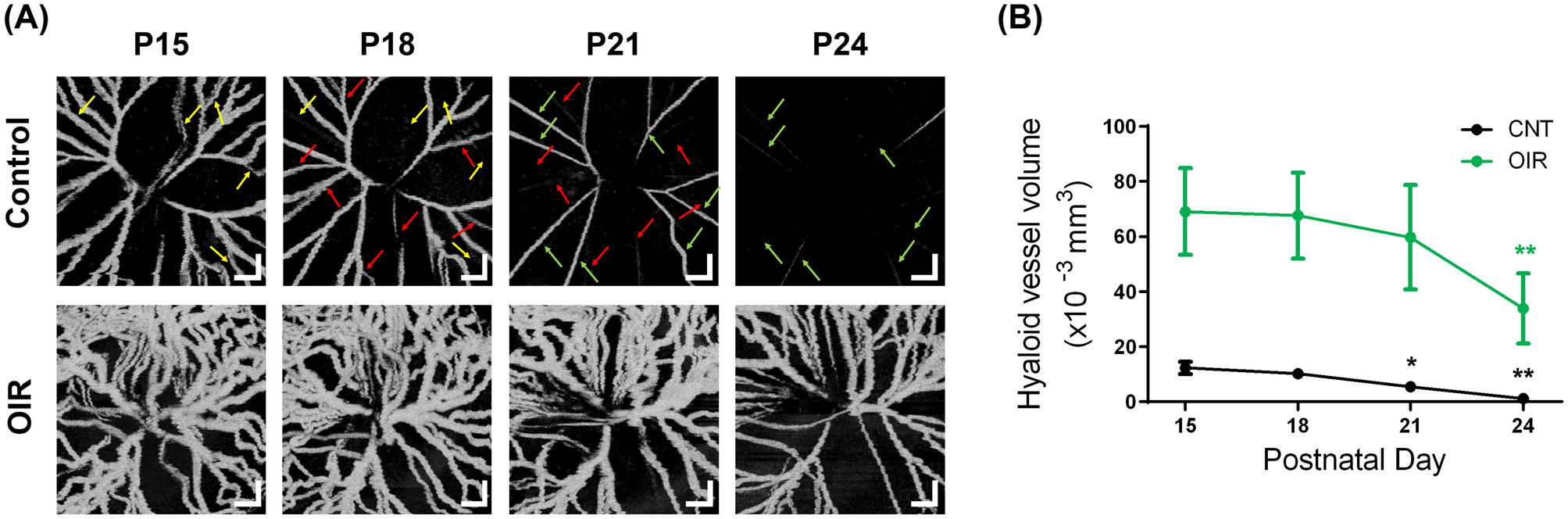

Longitudinal observation of the hyaloid regression from P15 to P24. (a) En face hyaloid OCTA images in control (upper row) and OIR eyes (lower row). The yellow, red, and green arrows in the OCTA images of the control eye indicate the vessels that were present at P15, P18, and P21 but disappeared at P18, P21, and P24, respectively. Scale bars: 200 μm. (b) Hyaloid vessel volume measurement in the control and the OIR eyes. *P < 0.05 and **P < 0.01.
