Figure 1 | Scientific Reports

Figure 1

From: Physical and mechanical properties of wood and their geographic variations in Larix sibirica trees naturally grown in Mongolia

Figure 1

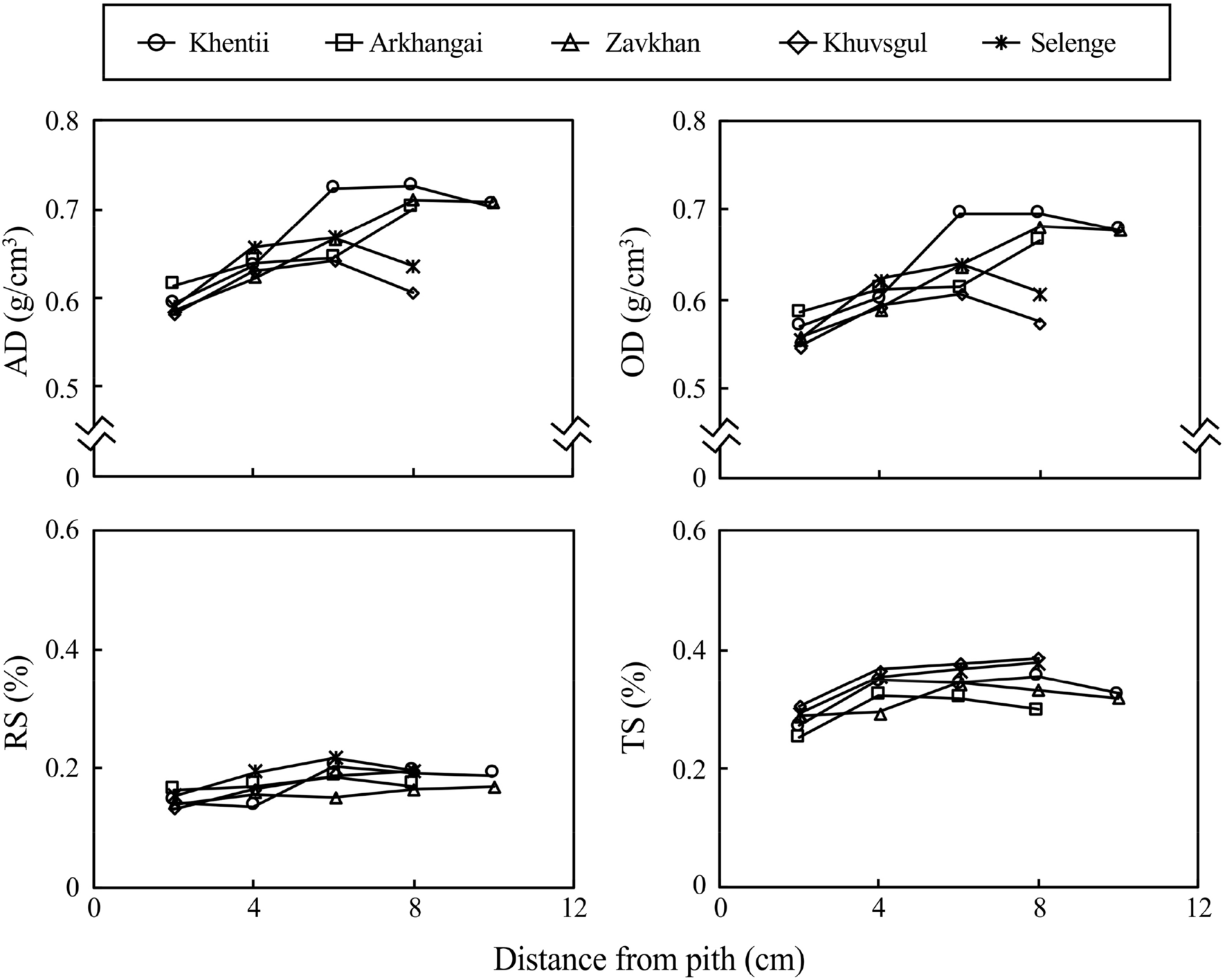

Radial variations of physical properties in L. sibirica obtained from different provenances in Mongolia. Each legend indicates the mean value of each radial position of five harvested trees in each stand. AD air-dry density, OD oven-dry density, RS shrinkage in radial direction per 1% moisture content change, TS shrinkage in tangential direction per 1% moisture content change.
