Figure 8
From: SNG and DNG meta-absorber with fractional absorption band for sensing application

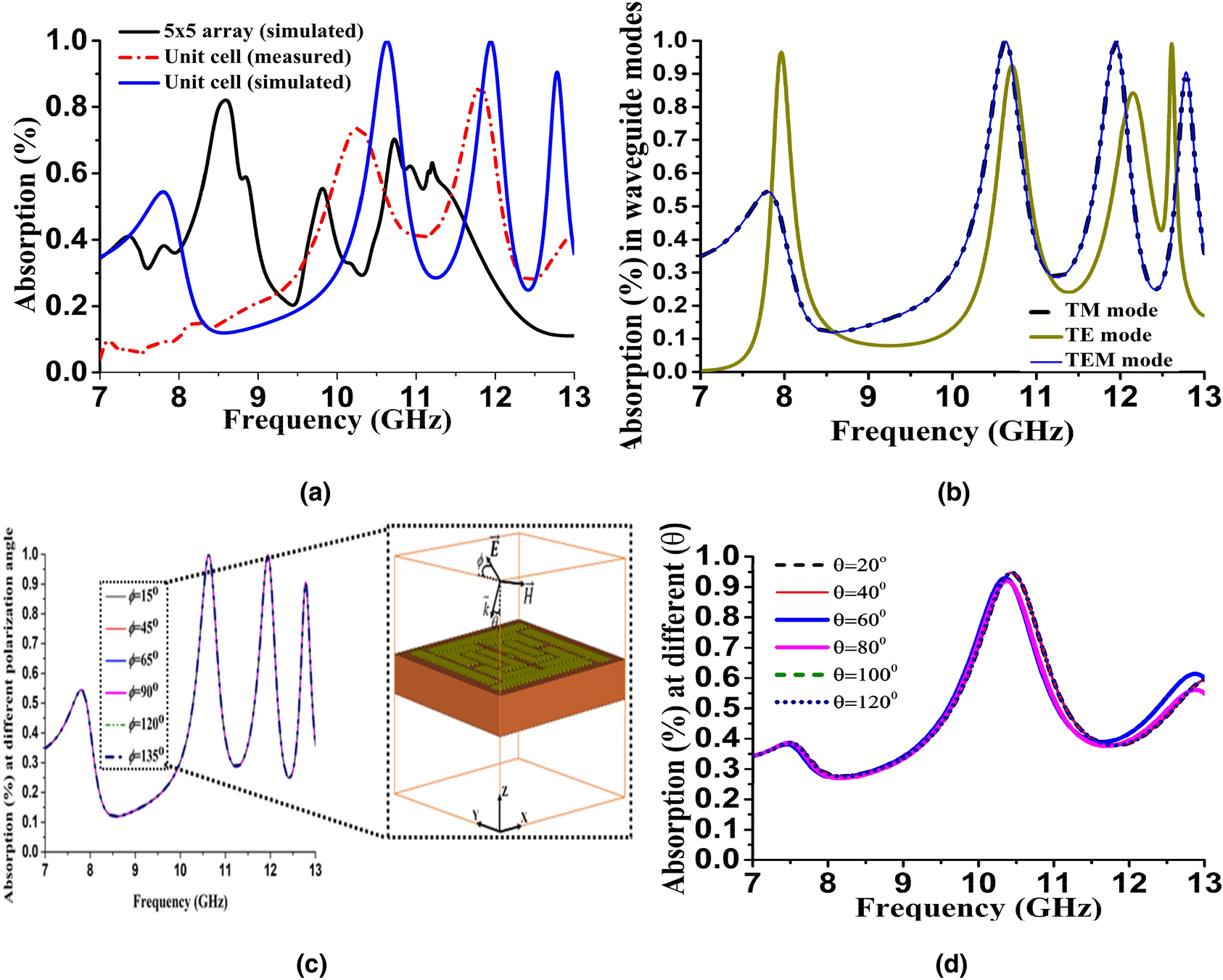

Unit cell absorption performance (a) simulated versus measured absorption percentage (b) transverse mode (TEM, TM, TE) absorption (c) and (d) polarization angle impact on absorption (inset: the relation between and in the unit cell).
