Figure 2
From: Monitoring soil radon during the 2016–2017 central Italy sequence in light of seismicity

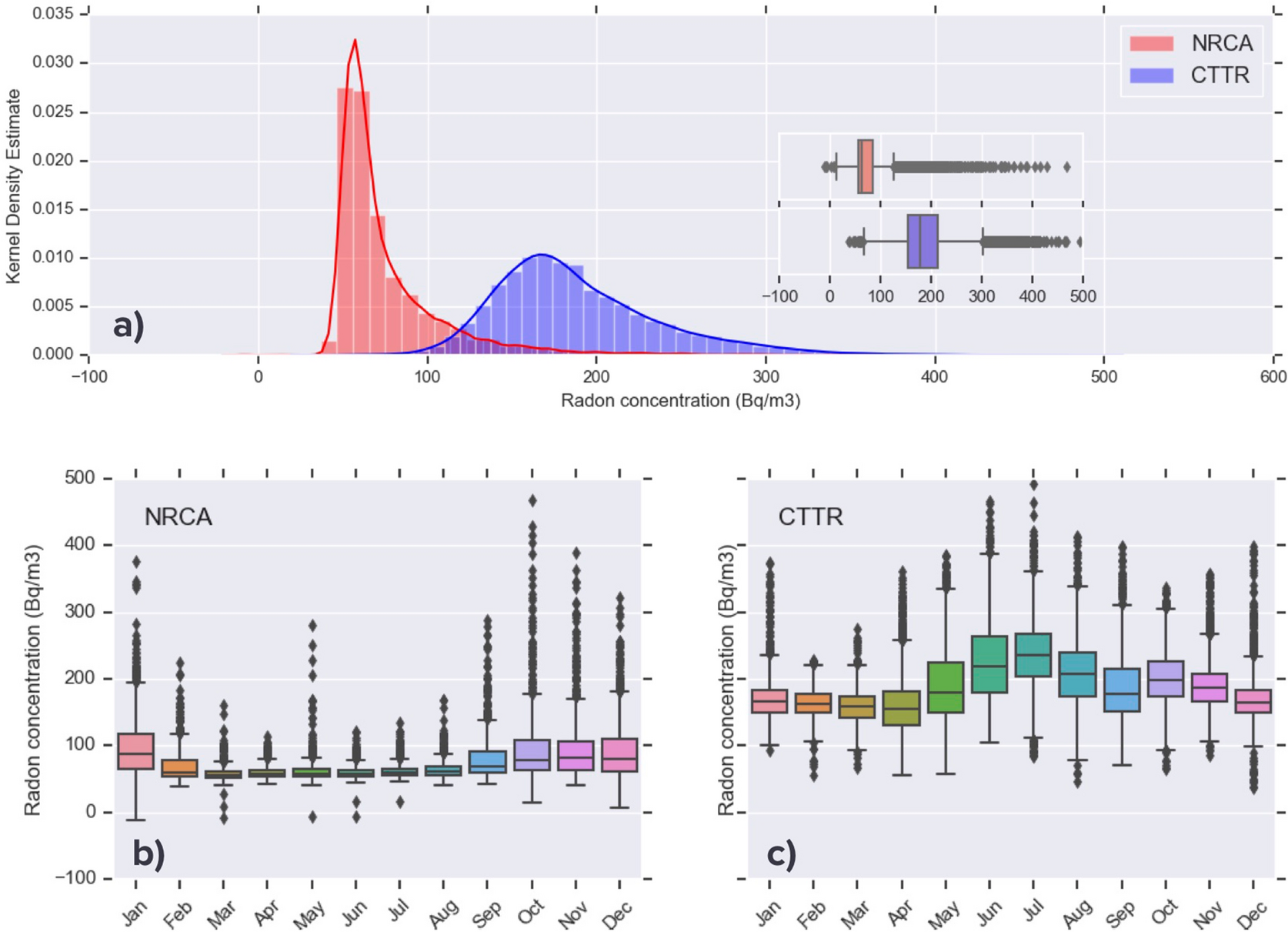

Estimated probability density function (kernel density estimate) and corresponding histogram for soil radon concentration data (a) collected at station NRCA (red) and CTTR (blue). (b,c) Month-wise boxplot of the same data.
