From: Rogue waves in disordered 1D photonic lattices

Figure 1

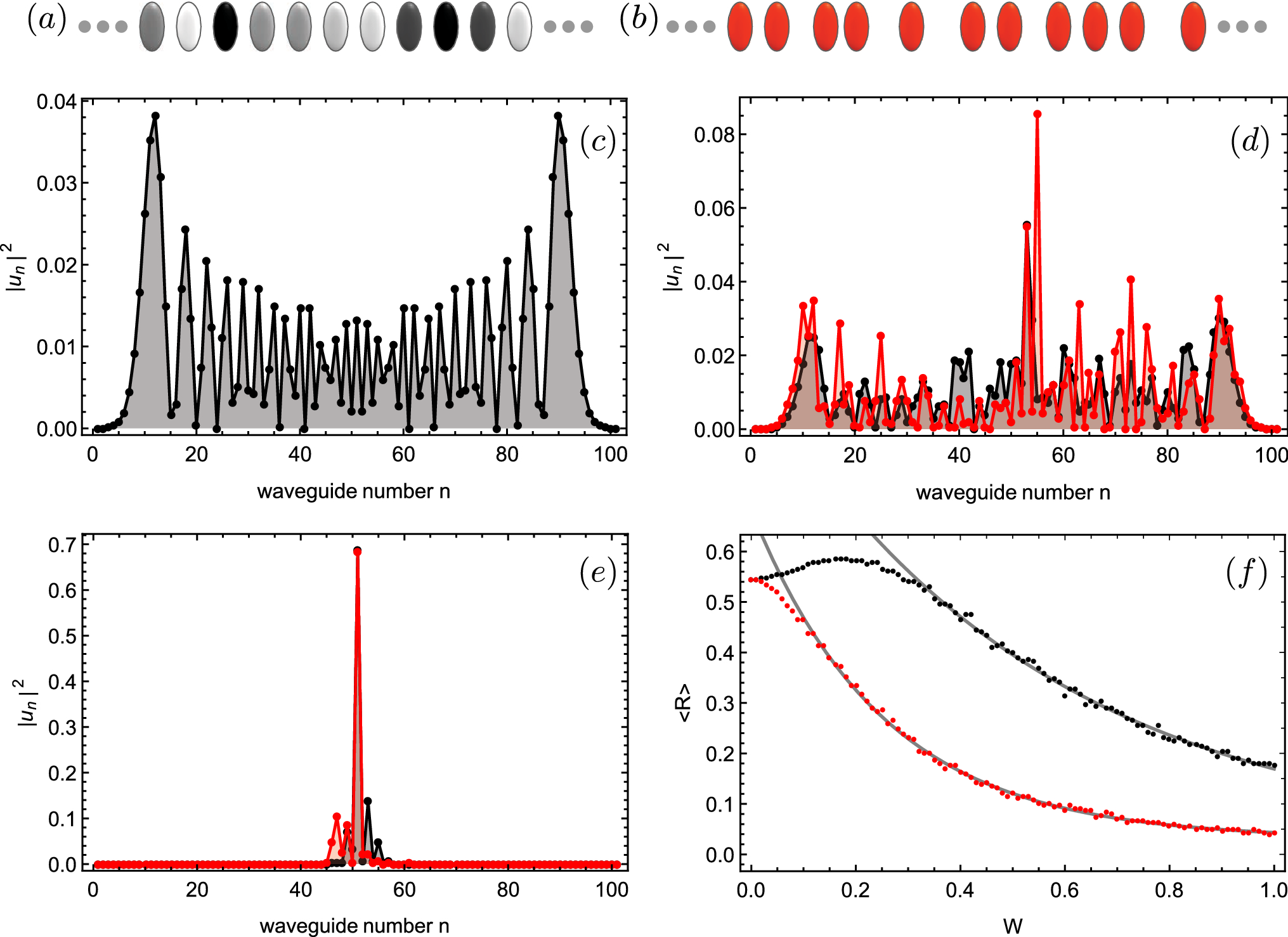

(a, b) diagram for lattices presenting diagonal and non-diagonal disorder, respectively. Intensity output profile at \(z=z_{max}\) for \(w_\beta (w_V):\) (c) \(0\ (0)\), (d) \(0.3\ (0.15)\) and (e) \(1\ (1)\). (f) Averaged output participation ratio R versus \(W_{\beta }(W_V)\) for 100 realizations (gray lines correspond to an exponential fit). Black (red) color is for diagonal (non-diagonal) disorder. \(N=101\) sites, \(V_0=1\), and \(z_{max}=21\).
