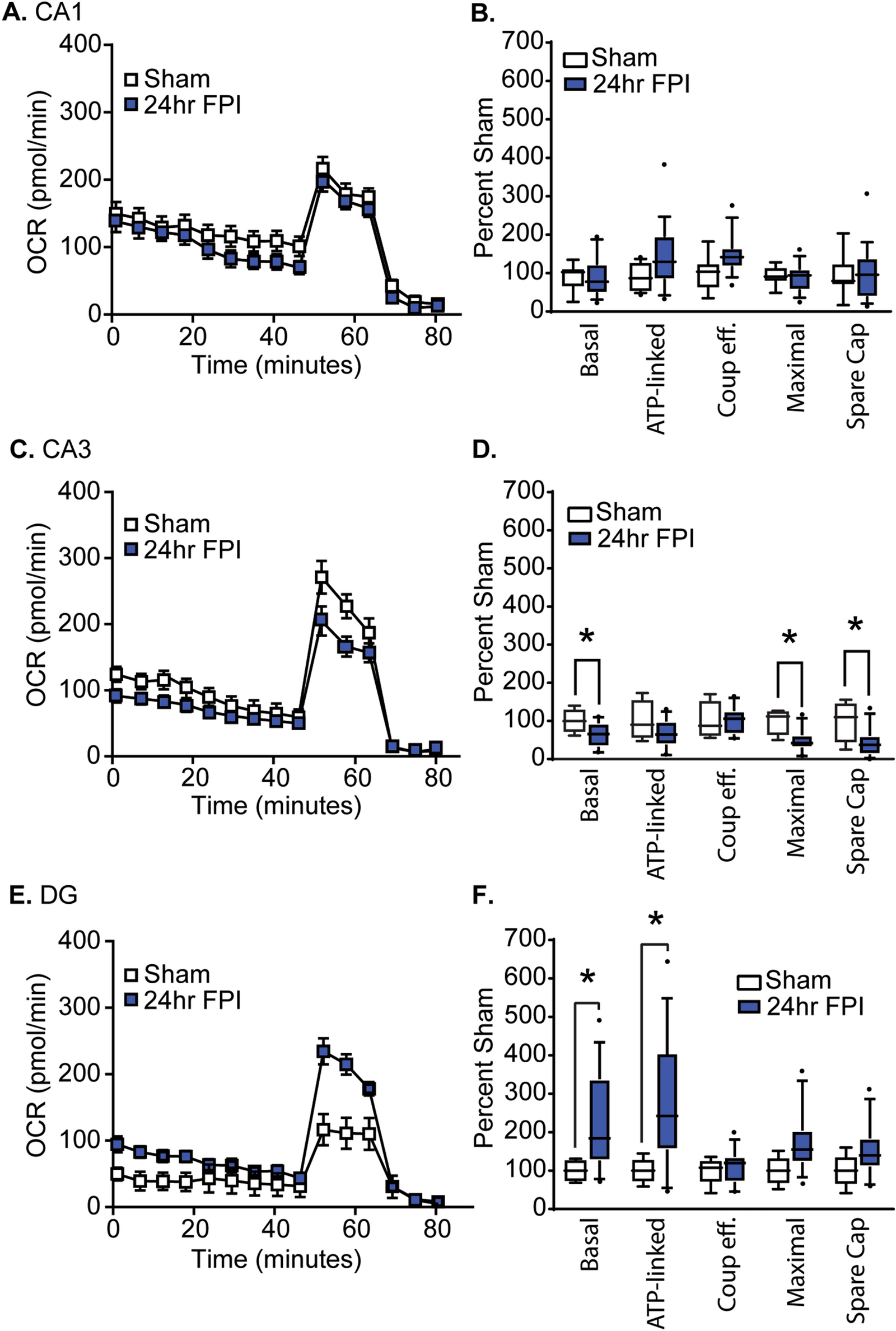

Figure 6

Mild fluid percussion injury (mFPI) differentially alters mitochondrial function across hippocampal subfields. Summary OCR data for punches excised from the (A, B) CA1, (C, D) CA3, and (E, F) dentate gyrus (DG) of sham (n = 4) and 24 h post-mFPI (n = 6) rats. Boxes indicate the 25th and 75th percentile. Whiskers represent the 5th and 95th percentile. Horizontal line represents the mean. *, significant differences between groups (post-hoc analysis after two-way ANOVA and correction for multiple comparisons).
