Figure 4
From: Extraction technique of trap states based on transient photo-voltage measurement

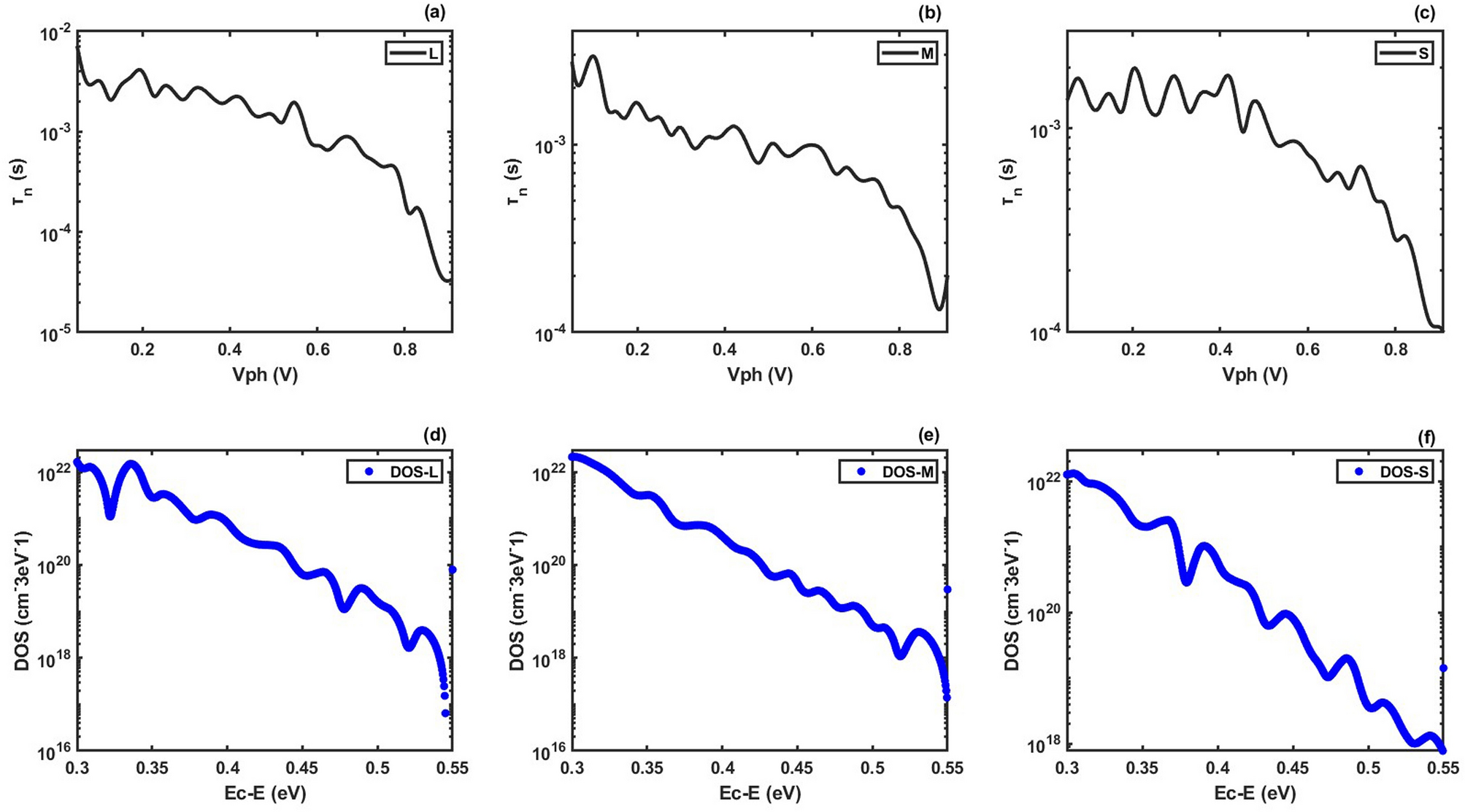

(a)–(c) TPV results for meso-structured perovskite solar cells with large, middle and small size of perovskite grain47. (d)–(f) DOST distributions extracted by our method from (a)–(c), respectively.
