From: Comprehensive N-glycosylation mapping of envelope glycoprotein from tick-borne encephalitis virus grown in human and tick cells

Figure 4

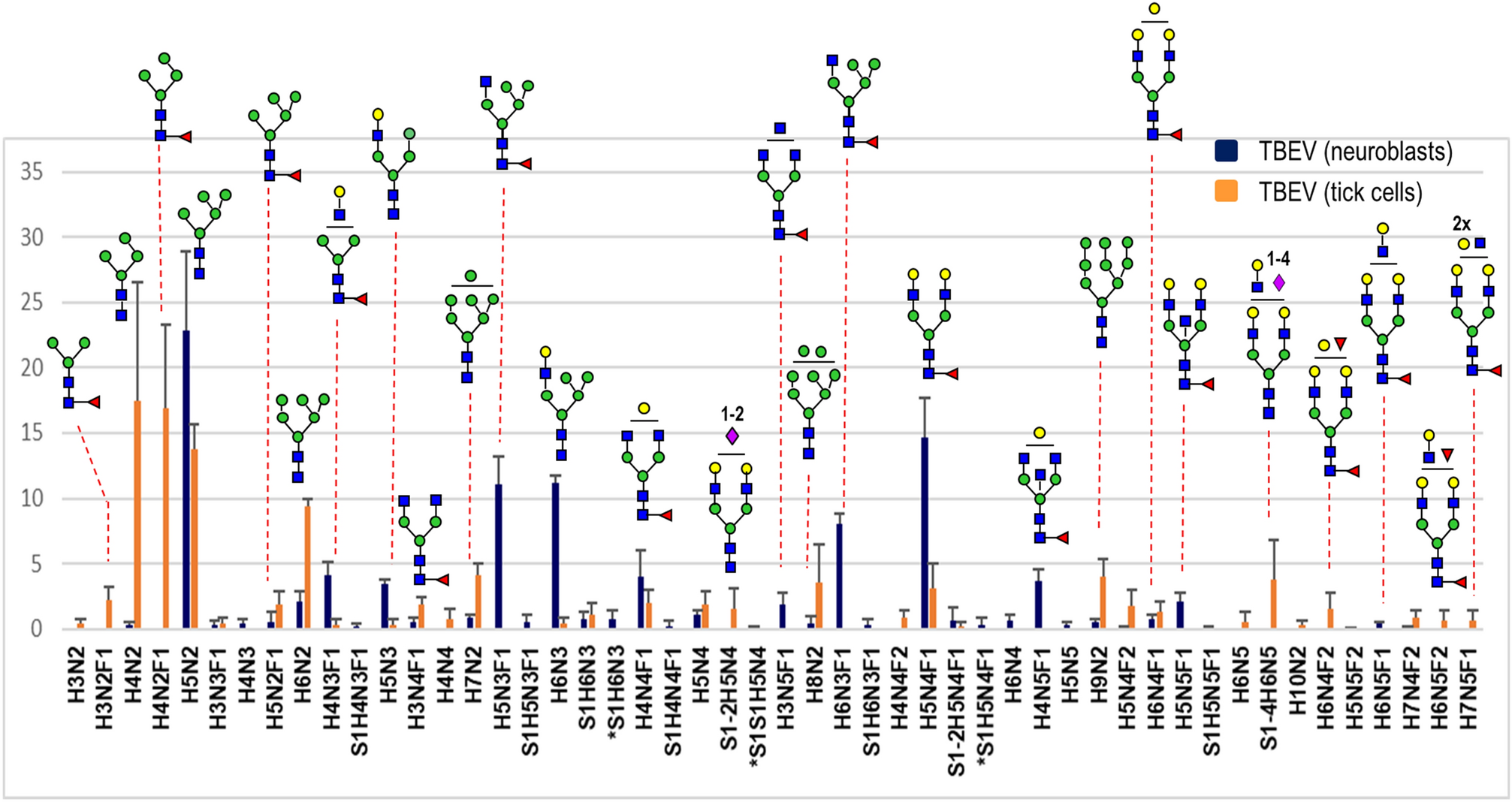

Graphical illustration of occurrence of N-glycans identified by MALDI-MS in the E glycoprotein of TBEV grown in human neuroblastoma (UKF-NB4; blue bars) and tick cells (IRE/CTVM19; orange bars). The graph was obtained from three experiments for each sample type and represents the averaged relative intensities with error bars as shown (± SD). N-glycan compositions are on the horizontal axis (H-hexose, N-GlcNAc, F-fucose, S-NeuAc, *S-NeuGc) and the calculated percentages (r.a) from measured peak intensities are on the vertical axis. For more information, see Supplementary Table 1.
