Figure 7
From: Central recirculation zone induced by the DBD plasma actuation

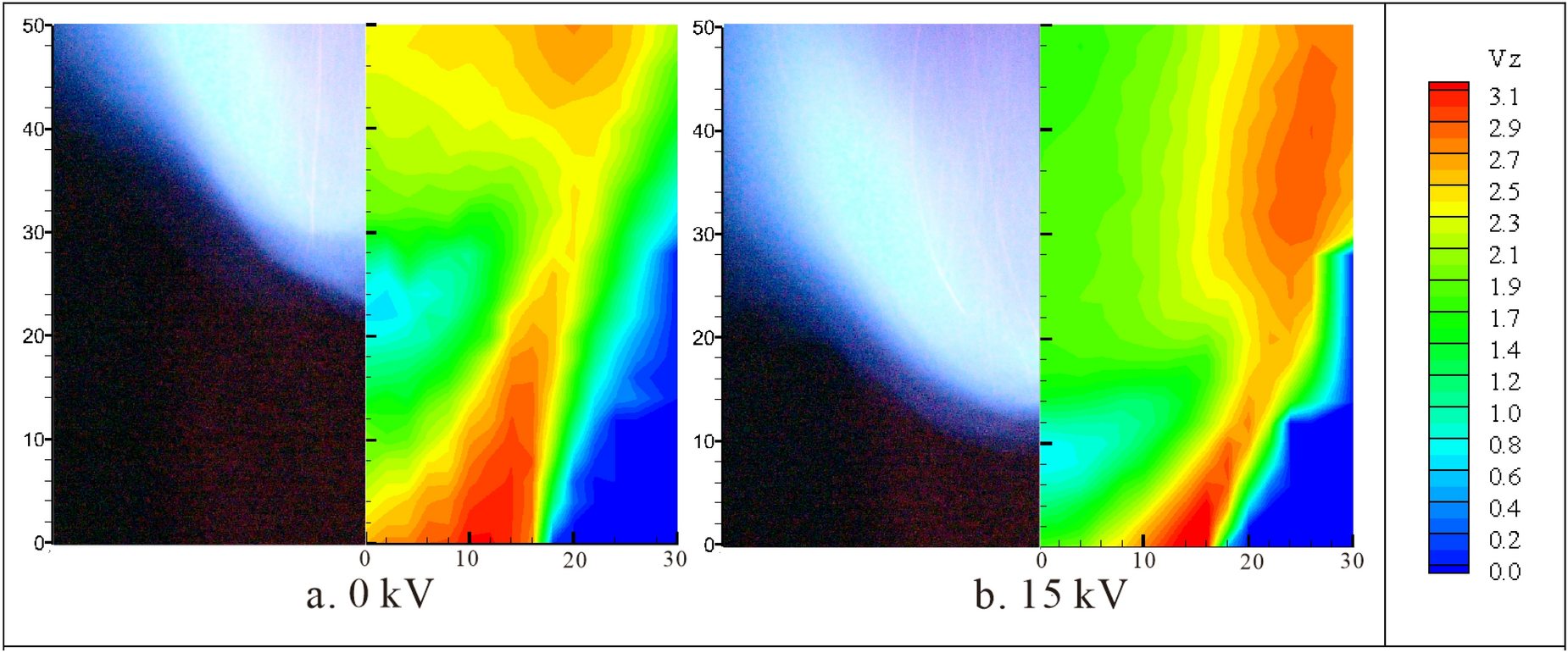

Illustrations of flame image and contours of the axial velocity with the air/CH4 volumetric rate at 150/12 L/min respectively.
Figure 7 | Scientific Reports
From: Central recirculation zone induced by the DBD plasma actuation
Illustrations of flame image and contours of the axial velocity with the air/CH4 volumetric rate at 150/12 L/min respectively.
