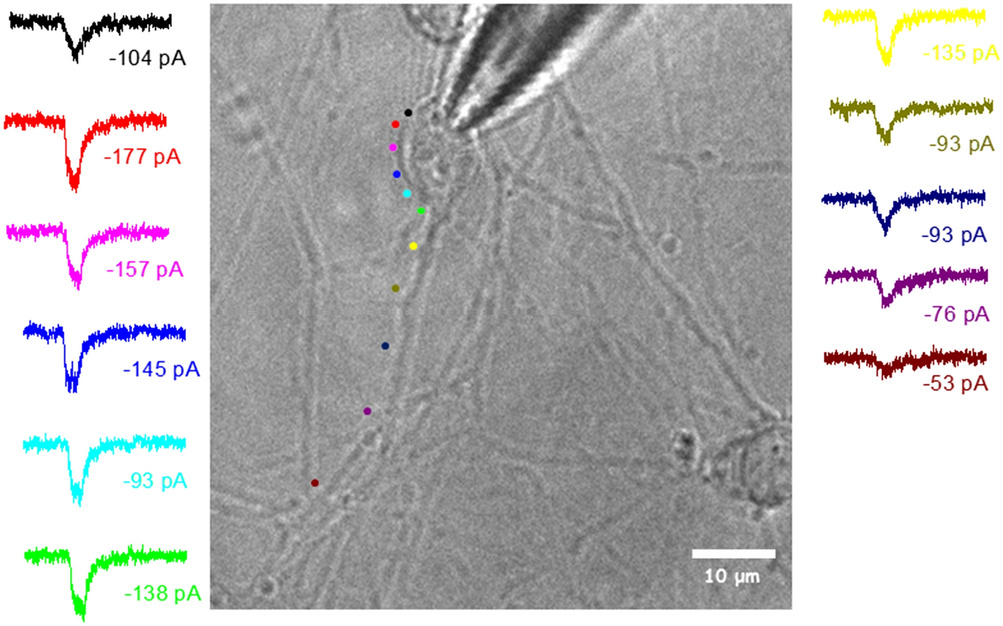

Figure 7

Map of uncaging points. Map of the current traces (with the corresponding peak value) recorded uncaging 10 µM RuBi–GABA (V = − 80 mV) at different points of the neuron for 2PE (750 nm, 100 ms, 77.3 mW). The color of the current trace and the dot, indicating the uncaging point on the optical image, is the same.
