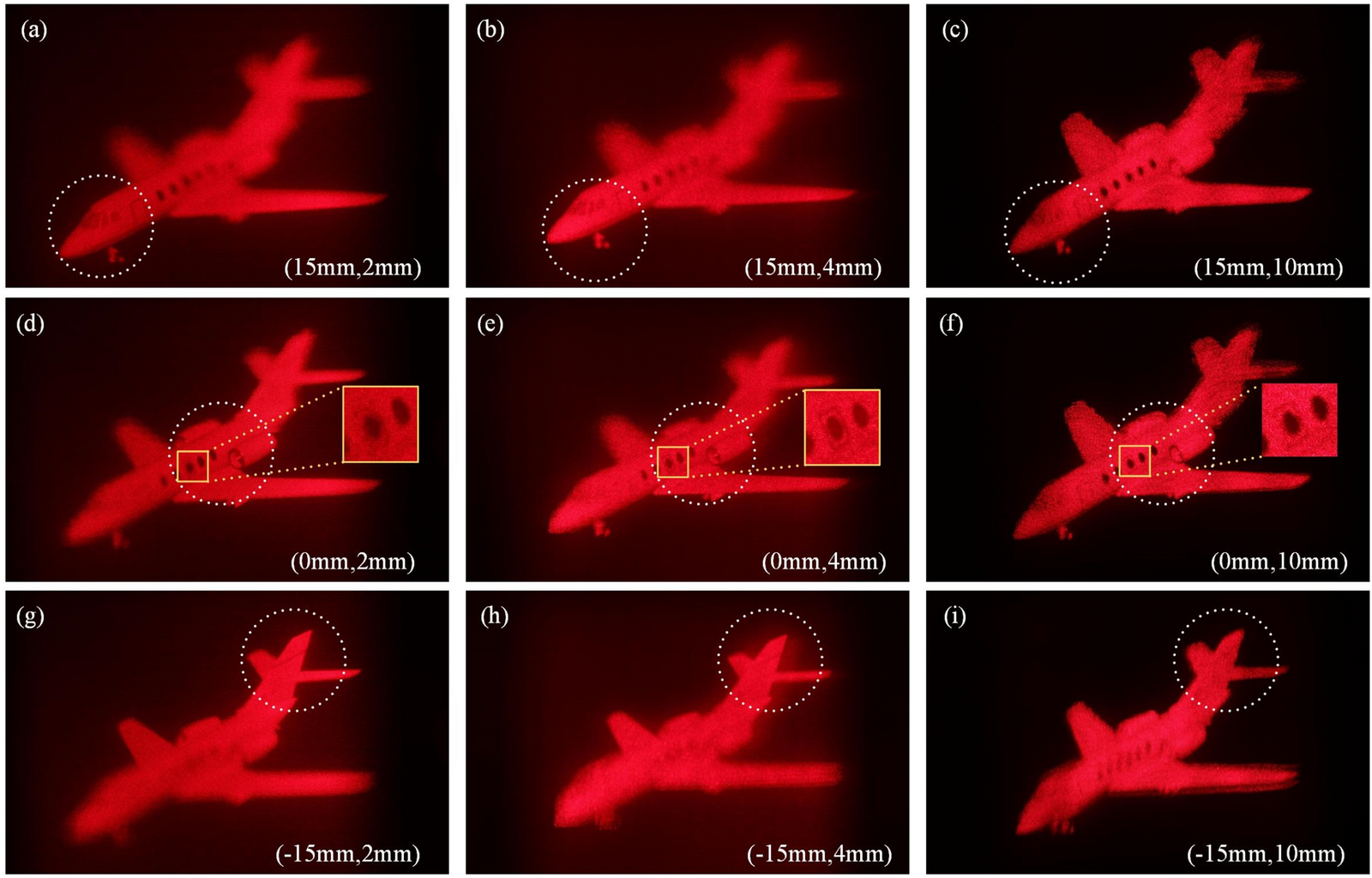

Figure 11

The images of optical reconstruction of the 3D aircraft under different positions of image plane \(L_{P}\) with different hogel sizes \(\Delta_{H}\), (a) \(L_{P} =\) 15 mm, \(\Delta_{H} =\) 2 mm; (b) \(L_{P} =\) 15 mm, \(\Delta_{H} =\) 4 mm; (c) \(L_{P} =\) 15 mm, \(\Delta_{H} =\) 10 mm; (d) \(L_{P} =\) 0, \(\Delta_{H} =\) 2 mm; (e) \(L_{P} =\) 0, \(\Delta_{H} =\) 4 mm; (f) \(L_{P} =\) 0, \(\Delta_{H} =\) 10 mm; (g) \(L_{P} =-\) 15 mm, \(\Delta_{H} =\) 2 mm; (h) \(L_{P} =-\) 15 mm, \(\Delta_{H} =\) 4 mm; (i) \(L_{P} =-\) 15 mm, \(\Delta_{H} =\) 10 mm.
