Figure 3
From: Standardized distances for placement of REBOA in patients with aortic stenosis

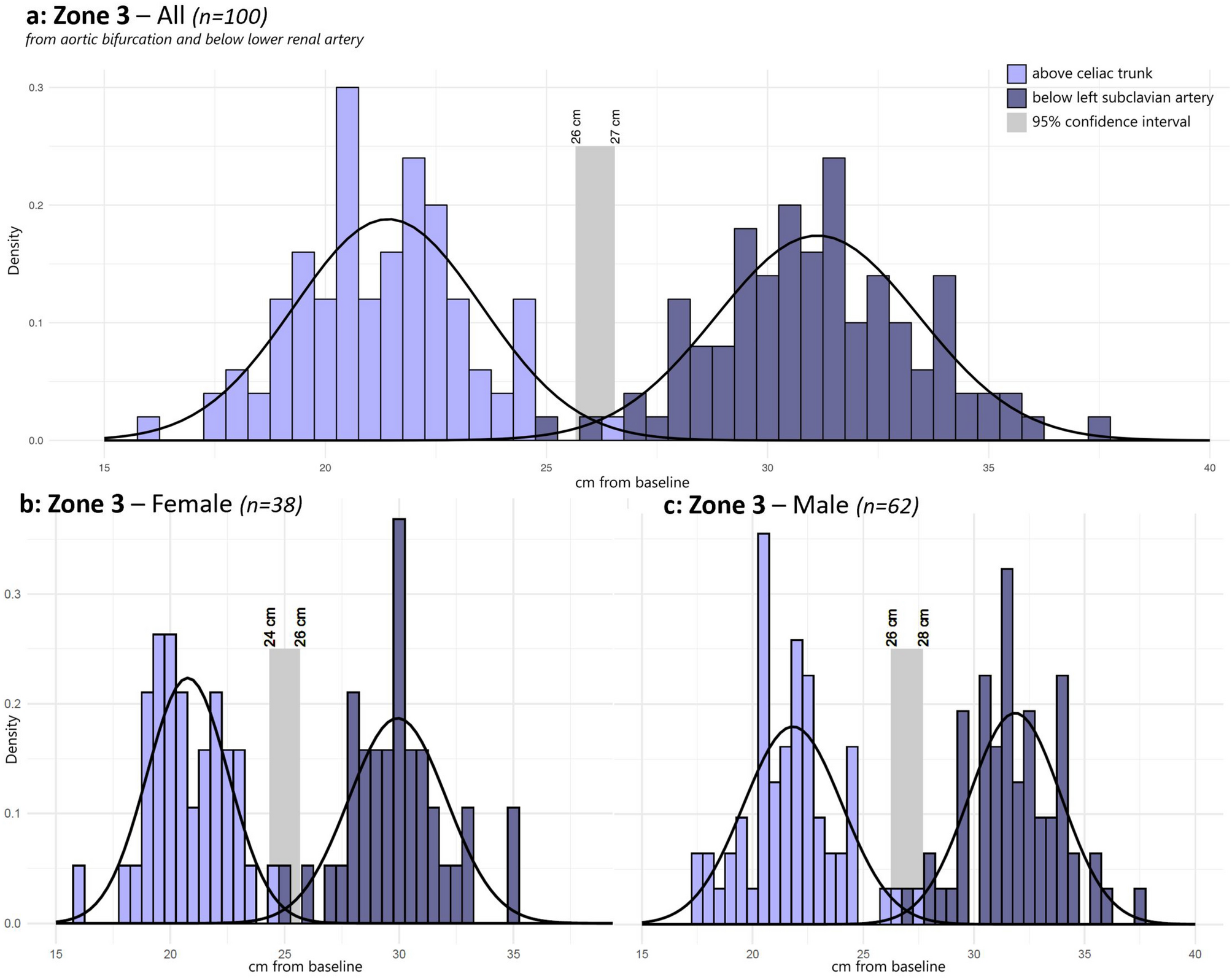

Location of Zone 3 in cm from the femoral arterial baseline in all (a), in female (b) and in male (c). The upper border (below lower renal artery) and lower border (at aortic bifurcation) of Zone 1 were plotted into a histogram with grouping data in blocks of 0.5 cm and above a calculated normal distribution curve. Light grey rectangle defines the 95% confidence interval for placement in Zone 3. No 99.7% confidence interval could be defined for placement in Zone 3.
