Figure 6
From: Characterization of gap-plasmon based metasurfaces using scanning differential heterodyne microscopy

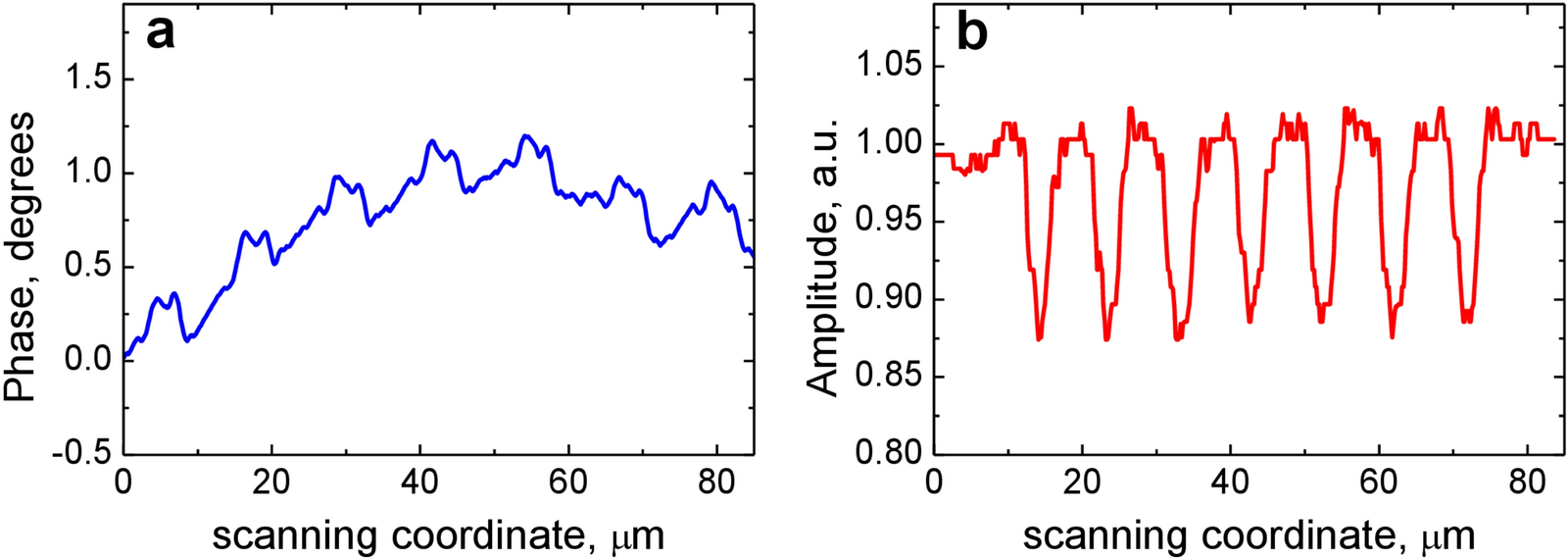

Amplitude-phase profile of the binary grating. Linearized SDHM phase (a) and amplitude (b) response are calculated from the experimental response shown in Fig. 4a,b.
