Figure 8
From: Characterization of gap-plasmon based metasurfaces using scanning differential heterodyne microscopy

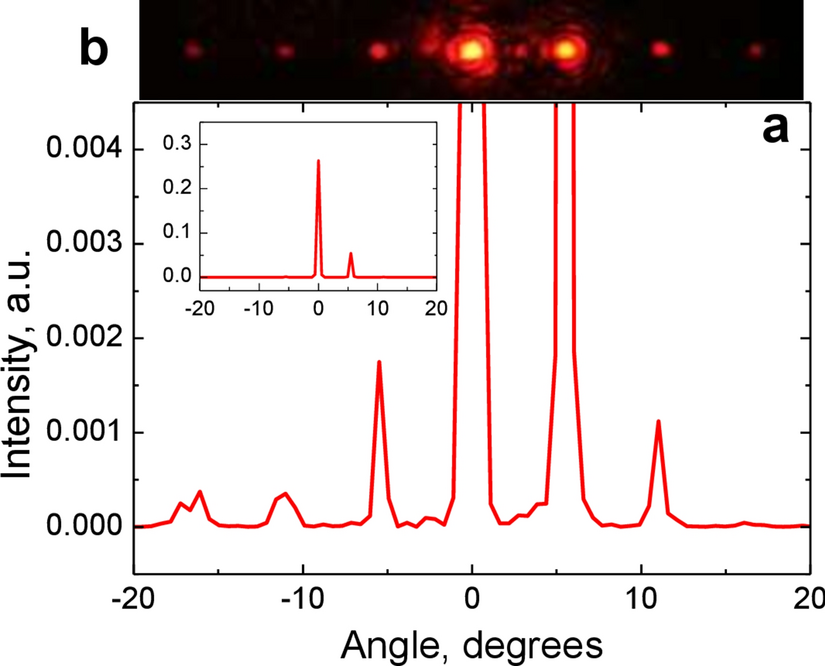

(a) Calculated spectrum intensity for the reconstructed phase-gradient metasurface profile. The full-scale intensity is shown in the inset. (b) Experimentally registered diffraction pattern of the phase-gradient metasurface.
