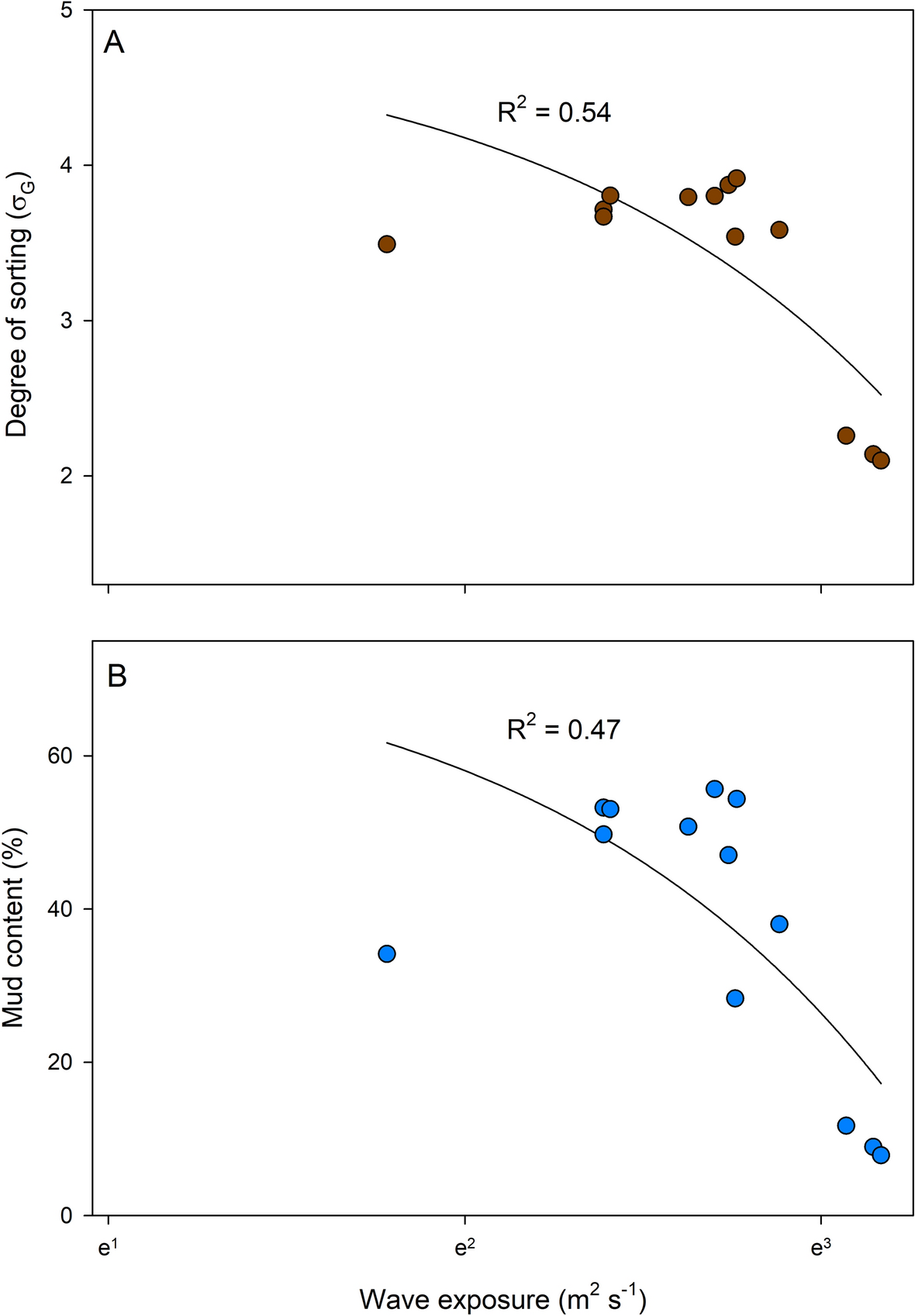

Figure 3
Relationships between wave exposure and (A) degree of sorting (σG), and (B) mud content (% DW) in surface (0–1 cm) sediments (n = 13). The values of the SWMd are expressed in a natural logarithm scale and non-logarithmic values ranged from 0.0001 to 43 m2 s−1 in the most exposed site.
