Figure 5 | Scientific Reports

Figure 5

From: Electrical antimicrobial susceptibility testing based on aptamer-functionalized capacitance sensor array for clinical isolates

Figure 5

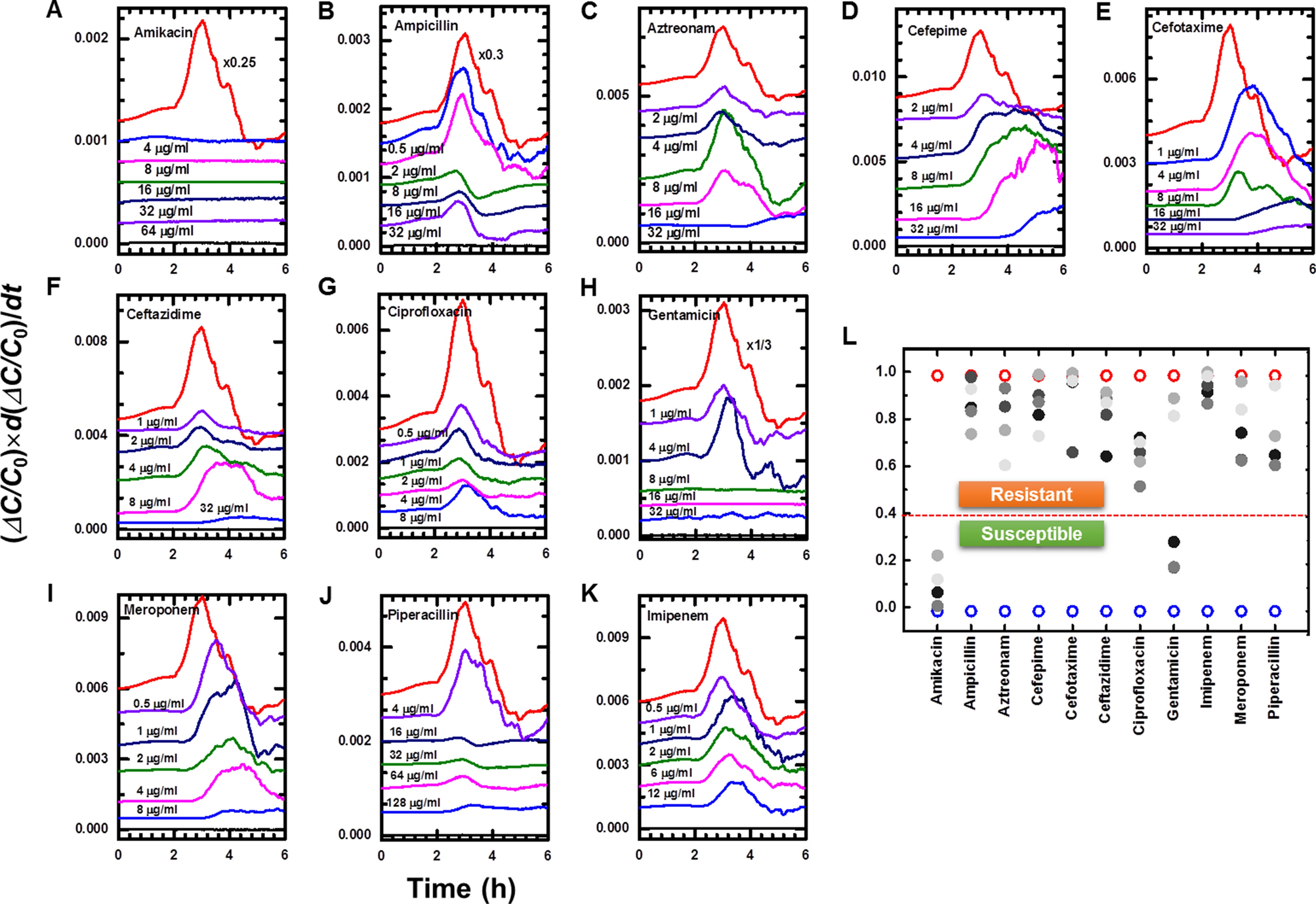

(A–K) Time dependence of (ΔC/C0) × d(ΔC/C0)/dt obtained using Gram-negative e-AST chip for A. baumannii R4197. The (ΔC/C0) × d(ΔC/C0)/dt curves are shifted to facilitate viewing. Positive control (red line) represents the data obtained from A. baumannii R4197 without antibiotics, and media (black line) represents the data of cell-free media. (L) Similarity measures estimated using the pattern matching algorithm for A. baumannii R4197. Higher concentration is indicated by the darker color. Blue and red circles indicate the similarity measure of cell-free media and A. baumannii R4197 without antibiotics, respectively.
