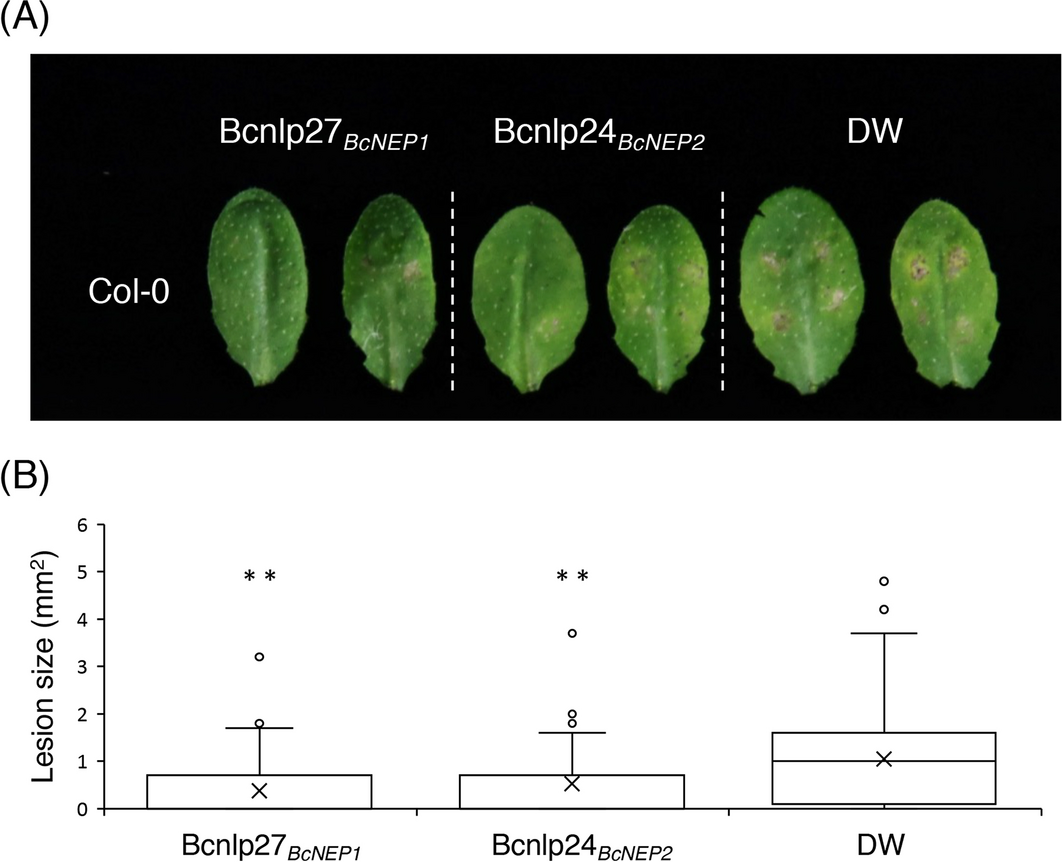

Figure 7
From: RLP23 is required for Arabidopsis immunity against the grey mould pathogen Botrytis cinerea
Inoculation of A. brassicicola together with the Bcnlp peptides reduced its virulence in Arabidopsis Col-0 plants. Leaves from 4–5-week-old plants were drop-inoculated with 5 µl of conidial suspensions (1 × 105 conidia/mL) of A. brassicicola together with 500 nM Bcnlp27BcNEP1, 500 nM Bcnlp24BcNEP2 or sterile distilled water (DW). (A) Lesion development caused by A. brassicicola. The photograph was taken at 5 dpi. (B) Lesion areas were measured in the experiments (A). At least 60 lesions were measured from each line at 5 dpi. The statistical significance of differences in lesion size was determined by Tukey’s honestly significant difference (HSD) test (**P < 0.01). The experiment was repeated twice, with similar results.
