From: Kinetic modelling of myocardial necrosis biomarkers offers an easier, reliable and more acceptable assessment of infarct size

Figure 1

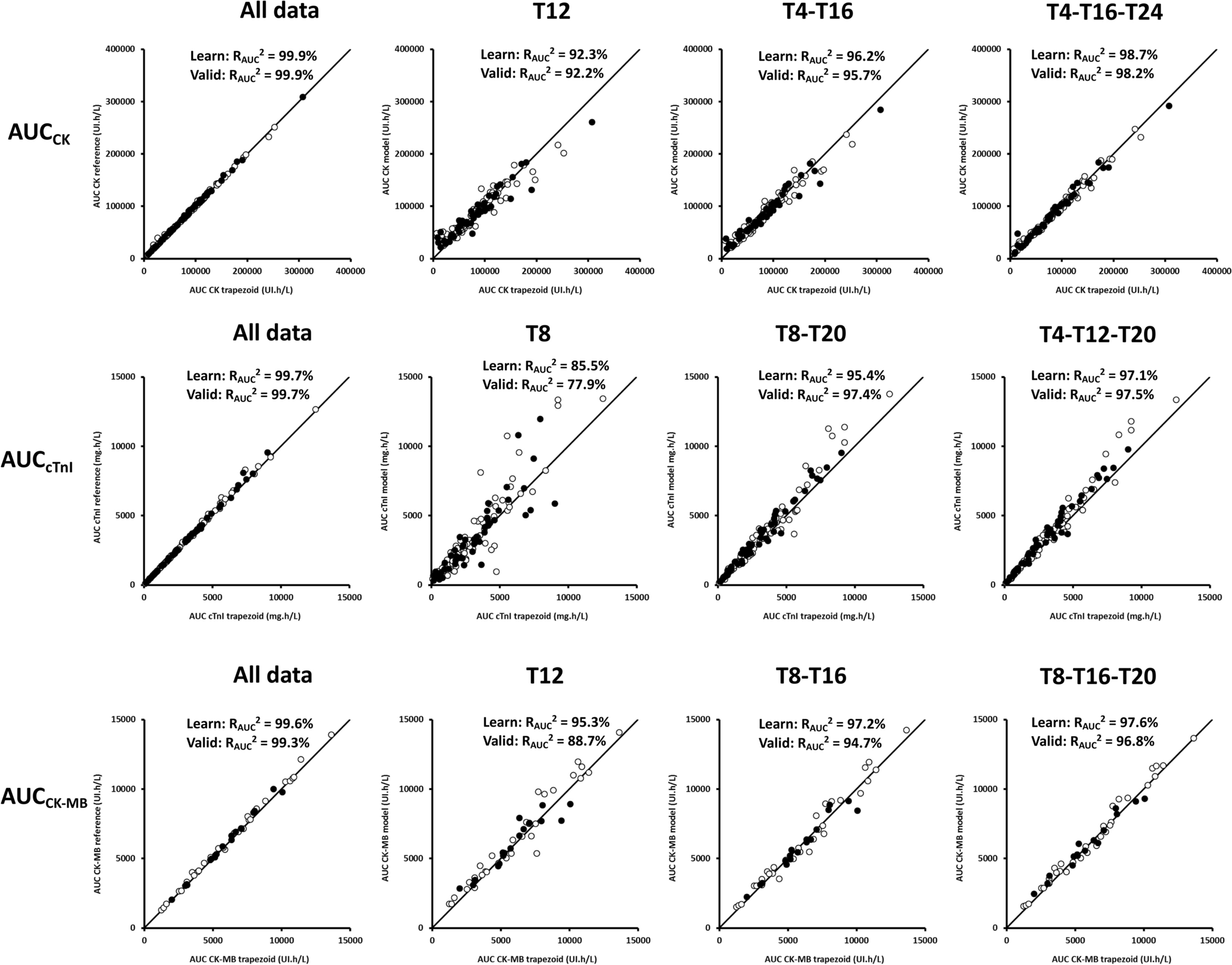

Observed versus model-predicted creatine kinase (CK, up), cardiac troponin I (cTnI, middle) and creatine kinase muscle-brain (CK-MB, bottom) for limited sampling strategies. From left to right, all data points, then best 1-sample, 2-sample and 3-sample limited sampling strategies. Open and dark circles are observed/predicted biomarker level couples for learning an validation sets, respectively, the line is the first bisector line.
