Figure 4

From: Nuclear magnetic resonance spectroscopy of rechargeable pouch cell batteries: beating the skin depth by excitation and detection via the casing

Figure 4

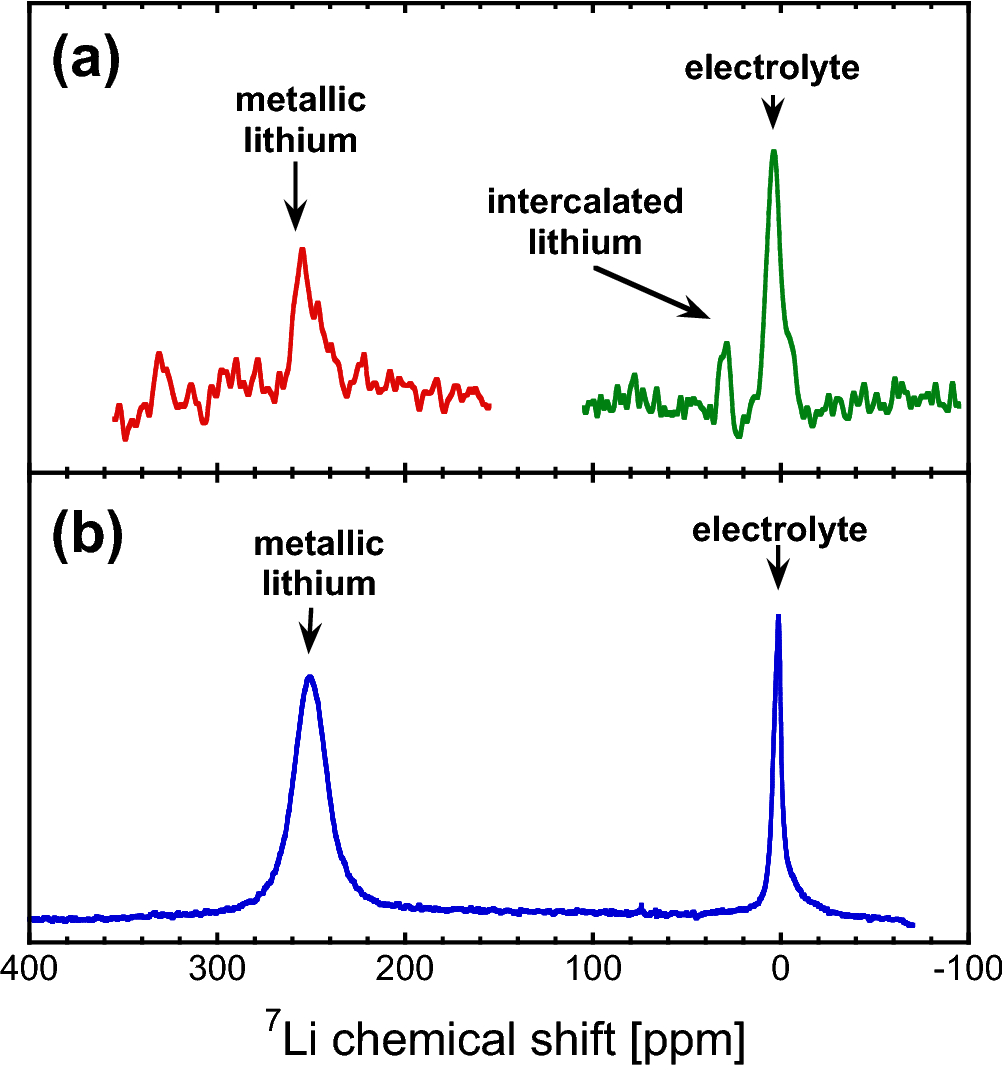

7Li NMR spectra obtained for the battery-as-coil setup using a Hahn echo preparation (a) and for a reference battery cell using a traditional solenoid coil and single pulse acquisition (b). Due to limited excitation bandwidth, the spectra in (a) were obtained from two separate measurements, one where the spectrometer frequency was at 255 ppm (left) and one where the spectrometer frequency was 5 ppm (right).
