Figure 3 | Scientific Reports

Figure 3

From: A proteogenomic profile of early lung adenocarcinomas by protein co-expression network and genomic alteration analysis

Figure 3

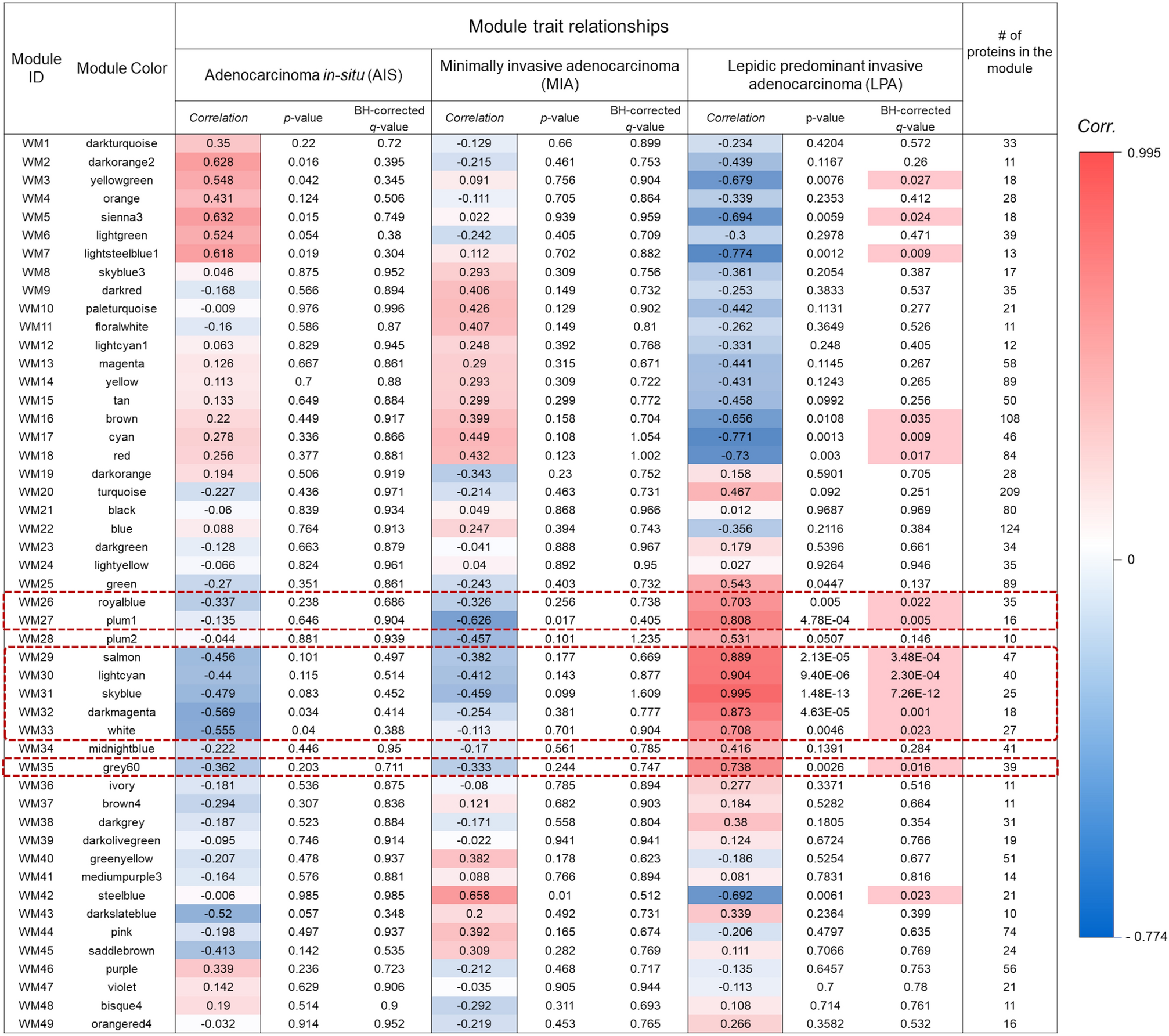

Relationship between module eigen-proteins and the clinical traits of subtypes AIS, MIA, and LPA. Each row in the embedded table represents weighted gene co-expression network analysis results for each module. The first and second columns in the table represent the module identification and colour name of the module, respectively. The twelfth column represents the number of proteins in each module. The p values of the correlation coefficients and q values by multiple testing correction using the Benjamini–Hochberg method are presented. The table is colour-coded by the correlation coefficient according to the colour legend on the right side of the figure. The intensity and direction of the correlations are indicated on the right side of the heatmap (red, positive correlation; blue, negative correlation). Columns with significant q values are highlighted in bright red background.
